Panasonic Develops High-Power Blue WBC Technology for DDL Applications on Microfabrication

Published: Jan 30,2020

Panasonic Corporation announced it has succeeded in demonstrating the world's highest brightness blue laser. This has been achieved by using the wavelength beam combining (WBC) technology on a direct diode laser (DDL) to produce a high quality output beam.

More on This

Panasonic and Octasic Extend sXGP Collaboration to 5G/Beyond 5G

Panasonic Corporation and Octasic Inc. today announced the enhancement of their ongoing collaboration to develop shared ...

Arrow, Panasonic Industry, and STMicroelectronics Join Forces to Deliver IoT Modules for Smart Appli

Arrow Electronics, Panasonic Industry, and STMicroelectronics (ST) have introduced a low-power wireless multi-sensor edge-intelligence solution for smart factory...

With this technology, power scaling is enabled while maintaining the beam quality by simply increasing the number of laser sources. This demonstration opens the door to laser intensities that could be two orders of magnitude higher than conventional blue laser systems. This technology will contribute to the emerging microfabrication processes, whose demand is expected to grow in industrial applications, such as in the automotive industry.

The automotive industry is moving towards “electrification” and “miniaturization” while requiring “high rigidity,” “design flexibility” and “productivity.” Against this background, the anticipation for the microfabrication lasers that can process various kinds of materials such as copper, gold and plastic is building up. Especially, blue laser with a high optical absorption efficiency has a high demand in the field of copper fabrication for the automotive motors and batteries. Highly-productive processing requires a laser beam source that has both high output power and high beam quality.

In order to attain such a beam source, Panasonic started collaboration with TeraDiode, Inc. (TDI), a Massachusetts, U.S.-based company, in 2013, and since has been developing WBC technology which can combine multiple and different wavelengths into one combined beam. In 2014, Panasonic released LAPRISS; the world’s first laser welding robot system equipped with an infrared DDL using WBC technology. In 2017, the company acquired TDI as a wholly owned subsidiary and started developing on the output-power optimization on WBC as well as shortening the wavelength.

The output power optimization of the high-beam-quality blue laser (wavelength band = 400 – 450nm) was realized by combining more than 100 emitters from multiple diode bars with WBC technology.

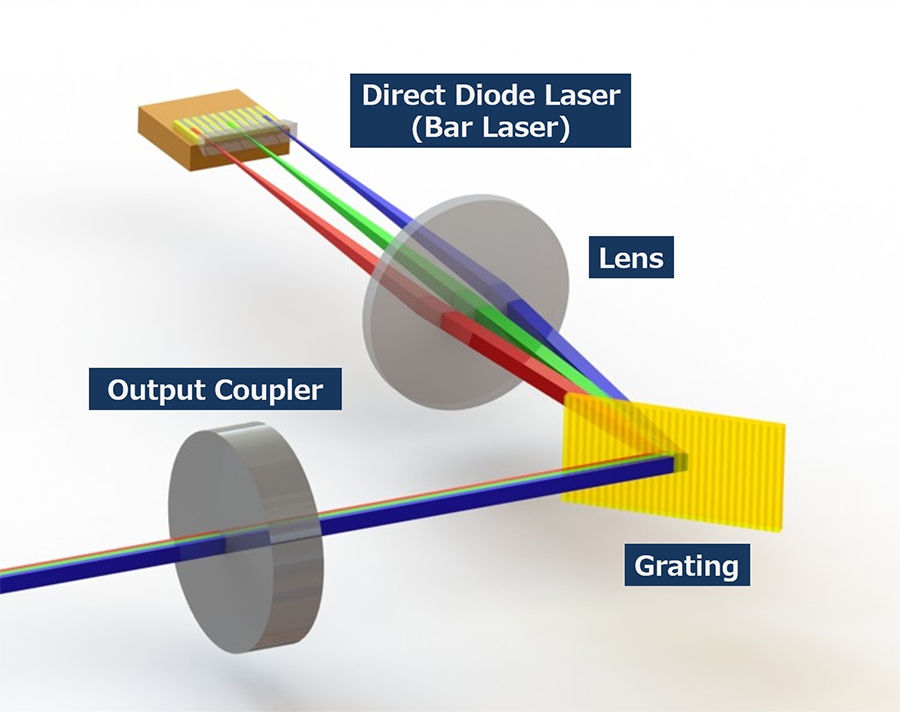

This WBC technology combines the beams from multiple emitters at different wavelengths that are incident on the diffraction grating at angles corresponding to each wavelength. The resonator is then formed in between the shared partially-transparent mirror and each edge face of the emitters. As a result, the output beam has achieved a output of 135 W with a high beam quality of BPP 1.5mm・mrad.

Going forward, Panasonic will develop a processing system that is equipped with this laser beam source, as well as the process optimization in laser processing.

Panasonic will hold exhibits and lecture sessions on our technical achievement at PHOTONICS WEST 2020 in San Francisco from February 1 to 6, 2020.

A part of this research and development includes the data obtained from a project – “Development of advanced laser processing with intelligence based on high-brightness and high-efficiency laser technologies (TACMI project)” – commissioned by the New Energy and Industrial Technology Development Organization (NEDO) of Japan.
