Nuvoton NuMicro Family 32-bit MCU Debuts a New Series

Published: Nov 12,2013

802 Read

(Hsinchu, Taiwan,)Nuvoton Technology launched the new member of NuMicro microcontroller family - M058S series, the ARM Cortex-M0 32-bit microcontroller built based on the success of the popular Mini51 series. In addition to providing all the features from Mini51 and M051, the M058S upgrades the system frequency from 24 MHz to 50 MHz, offers built-in 8-channel 12-bit A/D with I/O expanded to 55 pins, enhance Mini51 and M051 series in the I/O requirements and provides three kinds of packaging: QFN33, LQFP48 and LQFP64, wherein LQFP48 and QFN33 are pin compatible with the Mini51 and M051 series.

More on This

Nuvoton Starting Mass Production of Re-Timer IC for USB4 Devices

Nuvoton Technology Corporation Japan (”NTCJ”) will start mass production of Re-Timer ICs that incorporate the world's first e-Marker and comply with the latest USB4,USB 3...

Nuvoton NuMicro M2354 Series Achieves World's First Mbed OS 6 Enabled IoT Security MCU

HSINCHU, Taiwan - Nuvoton Technology announces worldwide first Mbed OS 6 (the latest major version) supported developmen...

The M058S series operates at 2.5V ~ 5.5V, -40 ~ 85℃, and features up to 55 I/Os with functions of some pins shared, fast 12-bit A/D, 16-bit PWM, built-in high precision RC oscillator, 32-bit multiplier, structure NVIC (Nested Interrupt Control), 32 Kbytes Flash ROM, 4 Kbytes ISP ROM, and 2 Kbytes SRAM; the peripheral integrates one UART, one SPI, two I2C, four 32-bit Timers, WDT, low voltage reset, and Brown-out detection. The other functions cover a wide range of different products to meet customer needs, such as RF modules, industrial control, data collection devices, and consumer products. With more attention to cost-effective products currently, the M058S series provides users with an excellent cost-effective product solution.

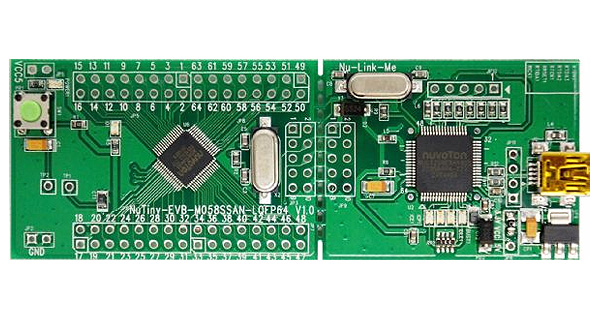

The NuTiny-SDK-M058S is a development kit which supports the M058S series to work with Keil RVMDK, IAR EWARM evaluation development environment – a free and open development tool, including project manager, editor, compiler tools and debugger. Additionally, Nuvoton provides the ISP (In System Program), ICP (In Circuit Program) and IAP (In Application Program) function, by either on-line or off-line programming system to update flash memory program.

The M058S series is now in volume production and offers the M058SZAN QFN33 (5mm x 5mm), M058SLAN LQFP48 (7mm x 7mm) and M058SSAN LQFP64 (7mm x 7mm) package types for various applications.

Nuvoton Technology continues to expand product competitiveness and provides cost-effective microcontroller products to meet customer’s demand.
