To fulfill the needs of well connectivity, expansion and security, the system supports wireless connections (3G/ GPRS or Wi-Fi), four COM ports, two isolated gigabit LAN, RTC battery, and two watchdog timers. Furthermore, its unique thermal design ensures reliable operation in critical environments at temperature range from -40°C to +70°C. The ready-to-run rBOX310-4COM equipped with smart AXView monitoring software is a total solution for power plant automation, facility monitoring systems, intelligent transportation systems, and more.

“Axiomtek’s rBOX310-4COM is a high performance DIN-rail fanless embedded field controller designed with standard IP30 housing and has Safety/EMI/EMS compliance. It is perfect for diverse mission-critical applications. Powered by dual core Intel Atom processor N2800 1.86GHz, the unit offers stable quality, fanless operation and extended temperature range of -40°C to 70°C for use in harsh environments,” said Maxine Hsieh, Product Manager of Product & Marketing Division at Axiomtek.

The robust rBOX310-4COM features rich I/O interfaces: four RS-232/422/485 ports, two isolated gigabit Ethernet, powerful storage interfaces, including one 2.5” SATA SSD (or HDD) and CompactFlash socket as well as 12~48 VDC terminal block power input with two power paths for industrial use. In addition, the excellent power design does not only reduce the running cost but also fulfills the intelligent computing and communication solutions in critical environments.

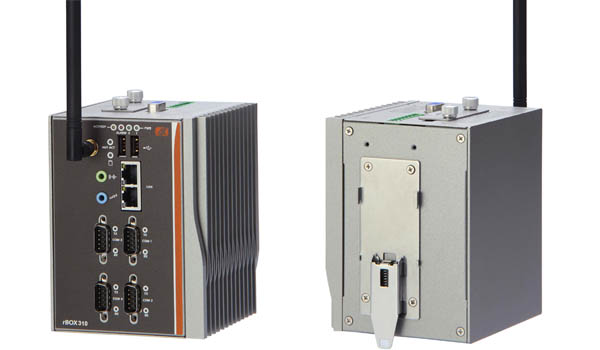

This compact system adopts an IP30-rated aluminum and steel enclosure. Its significant anti-vibration design can endure up to 5G. Its fanless and cabless design increases reliability, extends MTTR, and reduces maintenance efforts.

The rBOX310-4COM meets Safety Agency requirements and has passed heavy industrial CE with FCC Part 18 testing; hence, the unit provides high operational reliability and stability.

The RTC battery (battery onboard & gold-capacity onboard) provides power for the internal real time clock & calendar and is ideally suited to vibration environment. In addition, the gold-capacity onboard would be 1st backup battery without consuming battery onboard when power shut-down which reduces maintenance efforts.

The rBOX310-4COM comes with smart AXView software package for quick and easy startup, and has two Watchdog Timers for twice the security. Based on SNMP protocols, AXView makes it easy to manage and monitor remote computers for system administrators.

Features:

• Built-in Intel Atom processor N2800 1.86 GHz and Intel® NM10 chipset

• Wide range operating temperature form -40°C to +70°C

• Supports four COM ports (RS-232/422/485), two 10/100/1000Mbps Ethernet ports

• Supports one 2.5” SATA SSD (or HDD) drive bay, one easy-to-access CompactFlash

• Two USB 2.0 ports

• Supports one PCIe Mini Card slot and one easy-to-access SIM card socket for wireless connection (3G/ GPRS or Wi-Fi)

• RTC (Real Time Clock) battery: Battery onboard and Gold-capacity onboard

• Supports two power paths and 12 ~ 48 VDC-in power input with terminal block

• Supports intelligent AXView monitoring software package and SNMP V1/V2c
