Phase Extender, Slave Step-Down Controller for up to 240A Compatible with Digital Power System Manag
Published: Mar 16,2014259 Read

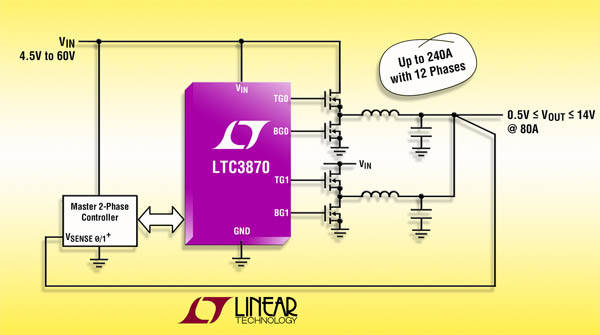

Linear Technology introduces the LTC3870, a dual phase synchronous step-down slave controller that can generate currents up to 240A when paired with a companion master controller by extending the phase count in multiphase applications. Compatible master controllers include the LTC3880 and LTC3883 digital power system management controllers.
40VIN, 2A Silent Switcher µModule Regulator in 6.25mm x 4mm BGA Package
Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTM8063, a 40VIN, 2A µModule step-down regulator in a tiny 6...
Dual Input Prioritizer Provides Low Quiescent Current Backup Supply Switchover Solution
Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTC4418, a dual input power prioritizer for 2...
’
The LTC3870 is full-featured controllers and provides the essential functions for multiphase slave designs. It operates over an input voltage range of 4.5V to 60V and produces a fixed output voltage up to 14V. Up to 12 phases can be paralleled and clocked out-of-phase to minimize filtering.
Its peak current-mode architecture allows for accurate phase-to-phase current sharing even for dynamic loads. Applications include power distribution, redundant (n+1) supplies, industrial systems, DSP and ASIC power.
The LTC3870 has a fixed operating frequency from 250kHz to 1MHz, or it can be synchronized to an external clock. The powerful 1.1 Ohm onboard all N-channel gate drivers minimize MOSFET switching losses.
Precise programmable current sense threshold limits from 50mV to 72mV minimize power loss and accurately set the overcurrent trip point. Additional features include selectable continuous or discontinuous light load operation, programmable phase shift control and overvoltage protection
Features:
●Phase Extender for High Phase Count Voltage Rails
●Ideal for Use with Digital Power System Management Master Controllers LTC3880
& LTC3883
●Accurate Phase-to-Phase Current Sharing
●Peak Current-Mode Control
●Wide VINRange: 4.5V to 60V
●VOUTRange: Up to 14V
●Up to 12-Phase Operation
●High Output Current Capable - Up to 240A
●Programmable Phase Shift Control
●Adjustable Current Sense Threshold from 50mV to 72mV
●Phase-Lockable Fixed Operating Frequency from 250kHz to 1MHz
●Powerful Onboard 1.1 Ohm Gate Drivers
●Overvoltage & Overcurrent Protection
