New 4th Generation Intel Core PICMG 1.3 Half-Size Single Board Computer

Published: Mar 28,2014

735 Read

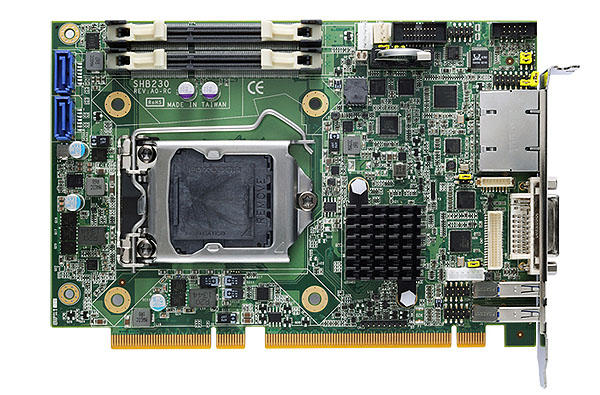

Axiomtek introduced SHB230, its high-performing PICMG 1.3 half-size single board computer. The SHB230 based on the Intel Q87 PCH is designed to support 4th Generation Intel Core i7/i5/i3 and Celeron processors in the LGA1150 socket.

More on This

Axiomtek Announces IFB125, a Compact, Rugged RISC-based Industrial IoT Gateway

Axiomtek announced the launch of its robust RISC-based DIN-rail industrial IoT gateway, IFB125, which is powered by the low-power Freescale i...

Axiomtek’s MPC102-845 – EN 60601-1 Certified 10.4” Medical-grade Touch Panel PC

Axiomtek announced its newest EN 60601-1 certified 10.4” medical-grade panel PC, the MPC102-845. This compact medical ...

The slot CPU card is equipped with two DDR3-1333/1600 SO-DIMM sockets with up to 16 GB memory capacity to meet customers’ needs. The PICMG 1.3 specification brings advantages of PCI Express to this single board computer that offers four PCIe x1 or one PCIe x4, and one PCIe x16 routed to the backplane.

The onboard two SATA interfaces support RAID 0/1 functions to ensure reliable storage for multiple applications. Utilizing with the latest Intel technologies, this PICMG 1.3 system host board is an ideal solution for DVR, medical equipment, industrial automation, process control, and network security market.

Axiomtek’s newest SHB230 is a mainstream platform designed with the new 4th Generation Intel Core processors, which provides excellent computing performance and power efficiency. It supports SATA RAID, Intel Active Management Technology (AMT) 9.0, and dual Gigabit LANs for network-intensive applications. In addition, the SHB230 CPU board with integrated Intel HD Graphics brings great 3D graphics performance and supports LVDS and DVI-I interface.

“Furthermore, this PICMG 1.3 half-size slot CPU card is fully compatible with Axiomtek’s PICMG 1.3 half-size passive backplanes, and we offer various industrial housing enclosures and have the capability to assist with any customer's industrial integration requirements." said Roger Shyu, Product Manager of Product & Marketing Division at Axiomtek.

To fulfill different application needs, the SHB230 offers rich I/Os including two SATA-600 slots, one CFast socket, two RS-232/422/485 ports, four USB 2.0 and two USB 3.0 ports as well as two Gigabit Ethernet ports using Intel i217LM and Intel i210AT chipsets. The embedded board comes with Intel Active Management Technology 9.0 (AMT 9.0) for better remote control management.

Besides, the half-size single board computer supports hardware monitoring and watchdog timer function to keep system running smoothly.

Features:

- LGA1150 socket for 4th Generation Intel Core i7/i5/i3/Celeron processors with Intel Q87 PCH, up to 45W

- Two 240-pin DDR3-1333/1600 SO-DIMM sockets up to 16 GB memory capacity

- Two SATA3 ports with data transfer rate up to 6Gbs

- Dual-view display via DVI-I or LVDS interface

- Four USB 2.0 ports and two USB 3.0 supported

- Supports one CFast socket

- Intel Active Management Technology 9.0 (AMT 9.0) supported
