World's First Three-Channel Interleaved CCM PFC Controller

Published: Apr 02,2014

124 Read

Designers of high power applications, such as air conditioner power supplies, need power factor correction (PFC) to improve power factor (PF) and harmonics to avoid deteriorating the power grid. To help address these challenges, Fairchild now delivers a combination of power devices, design expertise and manufacturing experience to its customers, allowing them to power amazing electronic products.

More on This

Turnkey Industrial Grade Motion Tracking Module with Embedded Sensor Fusion

Fairchild launched the FMT1000-series of highly accurate Motion Tracking modules, which enables the fast integration of motion intelligence into any system...

USB Type-C Portfolio Focusing on Smallest Footprint

Fairchild launched a comprehensive portfolio of USB Type-C solutions that enable manufacturers to quickly and easily add the next generation of USB functionality to smartphones...

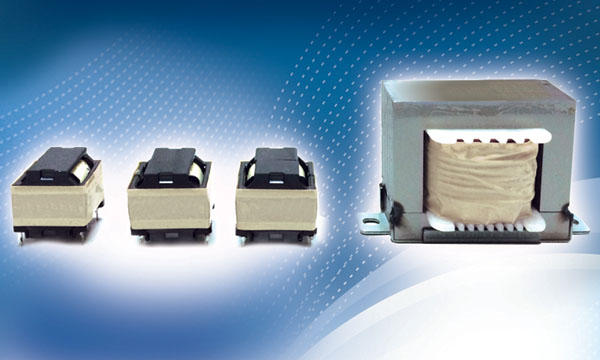

An industry-first, the FAN9673 is an interleaved continuous conduction mode (CCM) PFC controller that enables high power PFC control using the smallest possible inductors and lowest possible power rating switching devices, extending the capacitors' lifetime.

Unlike other solutions that provide two or less channel capabilities with fewer features, the FAN9673 can easily switch between one-, two- or three-channels with good phase management. The device also features a simple differential current sensing resistor and configurable output voltage control, enabling an easy, compact, cost-effective design for high power PFC applications up to 9 kW.

"Fairchild is committed to understanding customer needs and developing power solutions that are best for that individual customer," said DH Cho, Vice President, Power Conversion at Fairchild.

"By listening to what our customers needed, we developed the FAN9673 to help designers improve the stability and efficiency of their designs, while at the same time reducing cost and saving board space."

Features:

- Continuous Conduction Mode Control

- Three-Channel PFC Control (Maximum)

- Average Current-Mode Control

- PFC Slave Channel Management Function

- Programmable Operation Frequency Range: 18 kHz~40 kHz or 55 kHz~75 kHz

- Programmable PFC Output Voltage

- Two Current Limit Functions

- TriFault Detect™ Protects Against Feedback Loop Failure

- Sag Protection

- Programmable Soft-Start

- Under-Voltage Lockout (UVLO)

- Differential Current Sensing

- Available in 32-Pin LQFP Package
