Low Voltage Step-up DC-DC Converter Boosts Efficiency
Published: Jun 26,201423 Read

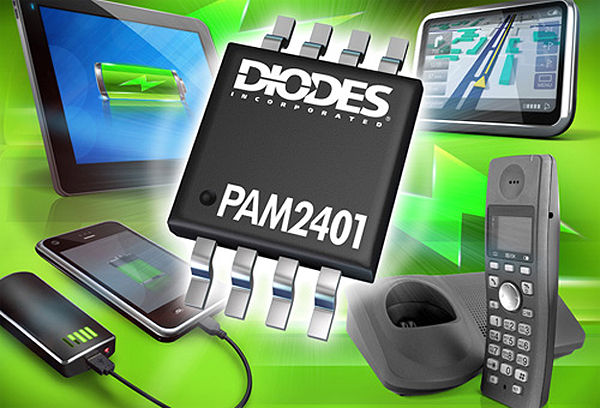

Diodes Incorporated (Nasdaq: DIOD), a leading global manufacturer and supplier of high-quality application specific standard products within the broad discrete, logic and analog semiconductor markets, today introduced the PAM2401. This device is a low voltage 1MHz step-up DC-DC converter designed to meet the heightened efficiency demands of portable products including battery backups, cordless phones and GPS receivers. Maintaining an operational efficiency as high as 95%, this synchronous converter provides true output disconnect to prevent leakage and ensures safe start-up at an input as low as 1V.
Diodes Introduces World’s First Power Switch to Support USB Type-C
The DPS1133 single-channel power switch introduced by Diodes Incorporated is the world’s first high-voltage power swit...
Triac-Dimmable LED Controller/Driver Design Platform from Diodes Drives LED Lamps up to 25W
Diodes Incorporated introduced the AL1692. This LED controller/driver is a platform-based design solution for triac-dimmable LED lamps...
The PAM2401 offers a programmable current limit of 1.0A to 3.0A for its lower input operation voltage range of 0.9V to 4.75V. To help maximize battery life, the device automatically enters a high-efficiency pulse-skipping mode when driving light loads. In shutdown, quiescent current is less than 1µA.
By operating at a high fixed-switching frequency and integrating an N-channel MOSFET switch, a P-channel synchronous rectifier and a power-good indicator into MSOP-8 and U-DFN3030-12 packages, the converter reduces the number and size of external components and overall board space requirement.
The converter also provides over-voltage and over-temperature protection functions, with the device’s soft-start circuit ensuring safe automatic restart. Other features include anti-ringing control and hiccup-mode short-circuit protection.
