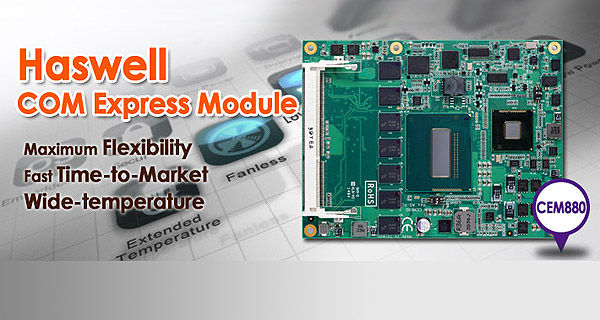

With unparalleled computing performance, low power consumption, wide temperature, and seismic design, the rugged basic-size SoM (system on module) is ideal for graphics-intensive and rich I/O applications such as telecommunication, medical imaging, digital signage, gaming machines, military, and networking.

“In conjunction with Axiomtek’s baseboard CEB94006 or user-supplied carrier board, the advanced module supports one PCIe x16 v3.0, eight PCIe x1 devices, and maximum up to 24 lans of PCIe to provide rich I/O options,” said Yifei Wang, product manager of Product Planning Division at Axiomtek.

“Furthermore, integrated with Intel Generation 7.5 graphics, the CEM880 correspondingly increases its display ability, offering 3D clear video HD, triple view, quick sync video and wireless display. Graphics outputs include VGA, LVDS and three DDI ports supporting HDMI/DVI/DisplayPort. The high performance SoM is aimed to accommodate the growing trend of prompt and high definition display needs.”

Following the latest PICMG Rev 2.1 specification, the CEM880 is designed for serial signaling protocols, including one PCIe x16 v3.0, eight PCIe x1, four SATA-600 with Intel Rapid Start Technology and Intel Smart Response Technology, one Gigabyte Ethernet supporting Wake-on-LAN, HD audio, one LPC interface, one SPI interface, 4 channels in and out Digital I/O, eight USB 2.0, and four USB 3.0. Furthermore, hardware monitor, TPM 1.2, SMBus and Watchdog Timer are supported as well.

Features:

－ COM Express Type 6 module

－ 4th generation Intel Quad/Dual Core i7/i5/i3 and Celeron processors

－ Intel QM87 chipset

－ On-board extended temperature 4 GB DDR3L chip (optional) and 1 DDR3L SO-DIMM max. up to 8 GB

－ Max. up to 24 lanes of PCIe

－ 4 SATA-600 and 1 CFast™

－ 4 USB 3.0 supported

－ TPM 1.2 supported
