Wide Temperature Pico-ITX SBC with Intel Atom CPU - PICO840

Published: Mar 19,2015

1976 Read

Axiomtek has launched PICO840, a ultra-small Pico-ITX embedded SBC utilizing the latest quad-core Intel Atom processor and supporting DDR3L-1066/1333 MHz system memory up to 8 GB.

More on This

Axiomtek Announces IFB125, a Compact, Rugged RISC-based Industrial IoT Gateway

Axiomtek announced the launch of its robust RISC-based DIN-rail industrial IoT gateway, IFB125, which is powered by the low-power Freescale i...

Axiomtek’s MPC102-845 – EN 60601-1 Certified 10.4” Medical-grade Touch Panel PC

Axiomtek announced its newest EN 60601-1 certified 10.4” medical-grade panel PC, the MPC102-845. This compact medical ...

Considering different environments, this industrial grade Pico-ITX mainboard is built to withstand extreme temperature, ranging from -40°C to +70°C (-40°F to +158°F). Moreover, with superior integration and power efficiency, this compact size single board computer enables system developers and OEMs to create smaller, lighter, quieter devices than ever and embrace the new possibilities across POS systems, mobile medical monitor, compact panel PCs as well as multiple embedded computer, system and appliance segments.

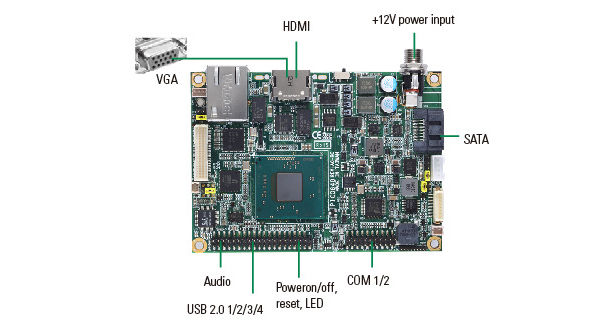

“The rich I/O connections, including four high-speed USB 2.0 ports, two Gigabit Ethernet ports, and two RS-232/422/485 serial ports, are offered for flexible machine to machine connection. The 18/24-bit dual channel LVDS and VGA (or HDMI) are supported for playback of multimedia. In order to meet different kinds of the storage demands, the optimized palm-sized embedded board comes with mSATA support and supports one SATA-3Gb/s connector. The Axiomtek PICO840 is absolutely an ideal solution for system integrator looking for a versatile, ultra-compact and reliable single board computer,” said Michelle Mi, product manager of Product Marketing Division at Axiomtek.

The extended temperature Pico-ITX embedded motherboard designed for rugged small form factor appliances. The PICO840 comes equipped with the AX93283 I/O board which provides system integrators with a less cabling solution in a cost-effective way. By connecting I/O board through high speed sockets, system integrators can get the most flexible I/O choices to fulfill vertical application requirements.

Features:

- Intel Atom processor E3845 (1.91GHz) or E3827(1.75GHz)(Bay Trail)

- 1 DDR3L SO-DIMM supports up to 8GB memory capacity

- 4 USB 2.0 ports

- 2 COM ports (RS-232/422/485 selectable)

- PCI Express Mini Card w/mSATA supported

- Extended temperature support from -40°C to +70°C (-40°F to +158°F)
