“The Axiomtek four channel Gigabit PoE embedded vision solution can simplify system installation and lower the maintenance costs. Thanks to its fanless design, the cost of personnel maintenance significantly reduces and there is no need to clean or replace air filter, or replace worn out fan anymore. The quad-core PoE fanless embedded system eBOX671-885-FL comes with full feature of I/O, including four COM ports, six Gigabit LAN ports with four PoE supported, six USB 3.0 ports, 8-CH programmable or optional isolated digital I/O, so as to integrate with various industrial equipment and communicate with multiple devices, such as motion sensors, buttons, optical detectors, relays, lighting and many more,” said Vincent Ji, product manager of Product Marketing Division at Axiomtek.

Concerning graphics performance, with the system memory maximum up to 16 GB, the high-performance embedded box PC can support three independent hi-resolution displays and 4K resolution, offering best quality imaging. For growing amount of storage need, the versatile vision system is equipped with dual 2.5” SATA HDD drive bays (RAID 0 & 1 supported), one CFast, mSATA.

Two internal PCI Express Mini Card slots and one SIM card slot allow system to access internet through 3G, Wi-Fi, GSM and LTE. Its compact size and wide range temperature (-20ºC~50 ºC) support make the device suitable for most hardened industrial environments. The rugged Gigabit PoE embedded computer eBOX671-885-FL is aimed to provide perfect performance, perfect-efficiency service, integrating vision and motion form factors for security, surveillance and optical inspection applications.

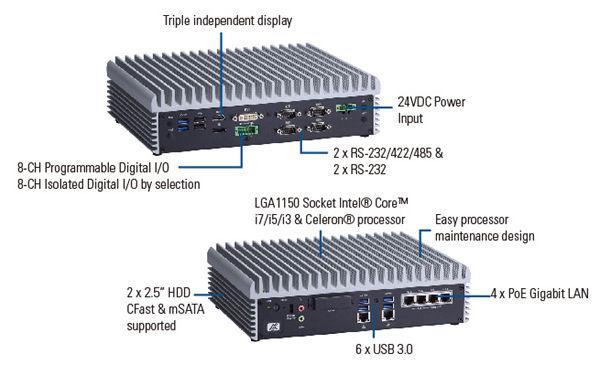

The I/O interface includes two Gigabit LAN ports, four Gigabit PoE ports, four COM ports (two RS-232/422/485 ports), one digital I/O, six USB 3.0 ports, two USB 2.0 ports, one audio, one DVI-I, one HDMI, one DisplayPort and three antenna openings. Wall mount kit is available upon request.

Features:

－ Extended temperature, fanless operation design with 4-CH GbEPoE ports

－ 4th Generation Intel Core i7/i5/i3 & Celeron (Haswell & Haswell Refresh) processor with Intel Q87

－ Two 2.5” SATA HDD drive bay, mSATA and CFast slots

－ Two internal PCI Express Mini Card slots, 1 SIM Card slot

－ Supports HDMI, DVI-I and DisplayPort for triple independent display

－ Supports optional isolated 8 Channel Digital I/O

－ Supports RAID 0 & 1, Jumbo Frame (9.5K), WoL, PXE and Teaming
