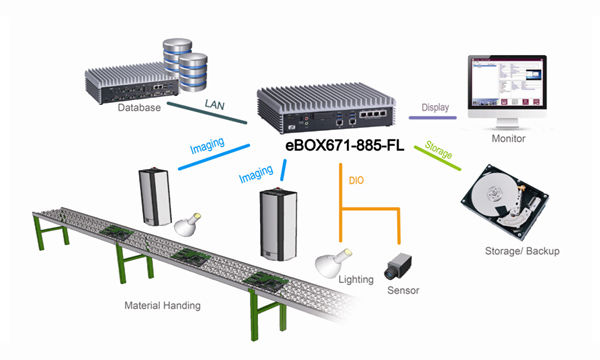

Coming with 4-port PoE (power-over-Ethernet) and 6 USB 3.0 ports, the eBOX671-885-FL provides the most dedicate solution for those who are finding high-end fanless vision system with multi-I/O connectivity and multi-camera imaging. Without fan filter cleaning and worn out maintenance, the PoE embedded vision system is under minimal repair while delivering outstanding performance.

The eBOX671-885-FL is equipped with an 8-channel programmable/isolated digital I/O to integrate with various industrial equipment and communicate with various devices, such as motion sensors, buttons, optical detectors, relays, lighting and many more. Axiomtek fanless PoE embedded system offers the fastest and the most accurate inspection to ensure good quality and all components are built correctly without any solder joint fault during manufacturing.

In some cases, staff may need to capture single image during assembly process to analyze failure situation, and then the demand of storage and backup function become much more important. The eBOX671-885-FL supports CFast™ socket, mSATA interface and dual 2.5" HDD/SSD with RAID 0 &1 for backup function. Its thoughtful fanless design, dust-proof housing, noiseless operation, and rich I/O connectivity allow Axiomtek’s embedded vision system suited for nowadays AOI and critical manufacturing environments. Besides, it is also excellence for factory automation, surveillance and transportation.

The eBOX671-885-FL includes two Gigabit LAN ports, four Gigabit PoE ports, four COM ports (two RS-232/422/485 ports), one digital I/O, six USB 3.0 ports, two USB 2.0 ports, one audio, one DVI-I, one HDMI, one DisplayPort , two Mini PCIe, one SIM slot and three antenna openings. Wall mount kit is available upon request.
