High Performance EPC612D4U-2T8R in Micro ATX
Published: Jun 29,20151953 Read
ASRock Rack announced its latest EPC612D4U-2T8R, the rare form fact features E5 processor, targeting the compact and powerful solution for server markets.
ASRock Rack to Showcase High-density 1U Solution and SoC Platform at WHD 2016
ASRock Rack announced that th company will showcase its latest products at WorldHostingDays.global 2016 (WHD) in Rust, Germany...
ASRock Rack Joins Open Compute Project U.S. Summit 2016
ASRock Rack, a Taiwanese high-performance and high-efficiency server technology provider, is showcasing its OCP3-1L and OCP3-6S in Open Compute Project (OCP) U...

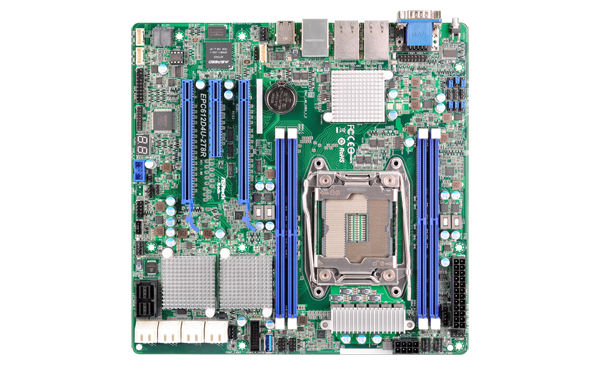

EPC612D4U-2T8R is considered to be the first MATX features Intel Xeon E5 v3 series with LGA 2011-3 single socket. It supports four DDR4 DIMM slots and eight SATA3.0 ports. Besides, the board comes with LSI 3008 to achieve the hardware acceleration by supporting eight SAS3 ports.
Meanwhile, the RAID implementation is attainable to meet the demand of redundancy. The expandability is good as it supports two PCIe 3.0 x16 and one PCIe 3.0 x8.
As for network capability, EPC612D4U-2T8R is equipped with 1 Intel X540, supports two of 10GBased-T, the throughput is fantastic. Overall, with the high performance processor, storage and network all together in a macro ATX motherboard, EPC612D4U-2T8R is perfect for the compact storage solution such as mid-range servers, web 2.0 storage servers, and other warm data servers.
It fits in ASRock Rack’s previous released storage solution 1U12L-C612D4U, and currently has EPC612D4U, EPC612D4U-2T, EPC612D4U-8R and EPC612D4U-2T8R for customers’ selection.
Features:
－ Micro ATX 9.6" x 9.6"
－ Socket LGA 2011 R3 Intel Xeon processor E5-1600/2600 v3 series
－ Supports Quad channel DDR4 2133/1866/ ECC DIMM, R DIMM, LR DIMM
－ Intel C612: 6 x SATA3 6.0Gb/s(support RAID 0, 1, 5, 10); 2 x sSATA3 6.0Gb/s(support RAID 0, 1)
－ Supports 8-port SAS 3 by LSI:3008
－ Supports 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x 8
－ Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
－ Supports 1 x IntelX540
