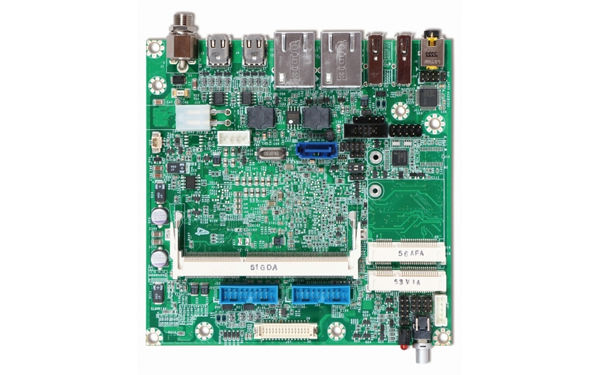

The NANO-6050 is an extremely high-performance single board computer (SBC) with embedded qualities. It is designed in the popular Nano-ITX form factor, predestined for 24/7 operation, and supporting industrial features as well as a guaranteed long-term availability of at least 7 years.

The flat design -- measuring 16.4mm in height with I/O shield -- allows space-saving installation in display and panel PCs, making the realization of digital signage and control solutions for industry and business applications a quick and easy task. And the Portwell NANO-6050-based system solutions are ideal for passively cooled and hermetically sealed systems that can be used in various environments.

The powerful integrated graphics eliminates any need to compromise on ease-of-use, something that is particularly important for POS (Point of Sales) and retail applications, such as kiosk systems. Three independent displays, two Mini DisplayPort (MiniDP) on rear I/O and one LVDS on board with high resolutions, make it possible to realize sophisticated user interfaces, such as touch solutions.

The NANO-6050, designed with 5th Generation Intel Core i3-5010U and Intel Core i5-5350U Processor, features one DDR3L 1333/1600 MT/s SODIMM socket equipped with up to 8GB DDR3L memory. It also integrates Intel graphics supporting DirectX 11.2, OpenGL 4.3, OpenCL 2.0 plus high-performance, flexible hardware decoding to decode multiple high-resolution full HD videos in parallel.

In addition, it supports up to 3840 x 2160 pixels with Mini DisplayPort and 2x24-bit LVDS up to 1920 x 1200 pixels, and is designed with the flexibility for connecting up to three independent display interfaces. Two USB 2.0 ports support ensures fast data transmission with low-power consumption. And four additional USB 3.0 port is made available. One 5 Gb/s PCI Express 2.0 lane can be used as 1x half-size mPCIe.

Two SATA 3.0 interfaces with up to 6 Gb/s (one of them available as mSATA and the other for SATA) allow quick and flexible system expansions. Intel I218-LM Gigabit Ethernet controller provides dual Gigabit Ethernet LAN access via the two RJ45 ports.

At Portwell, we strive for excellence and the NANO-6050 is merely one example of the multitude of superior products designed and manufactured at our facilities. We challenge ourselves constantly to understand our customers' unique business needs and are committed to meeting their demands.
