Axiomtek's SHB140 PICMG 1.3 Full-sized Single Board Computer Supports 6th Generation Intel Core Pr

Published: Mar 16,2016

7869 Read

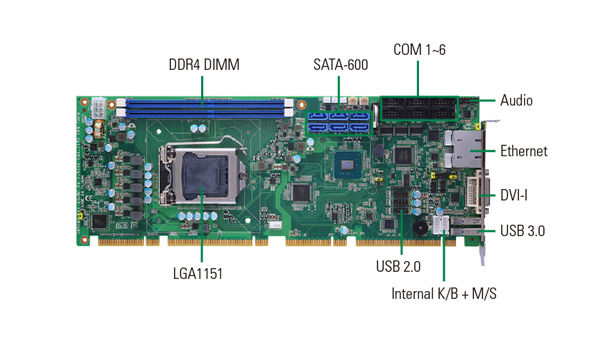

Axiomtek introduced the arrival of SHB140, its new PICMG 1.3 full-sized single board computer based on the 14nm 6th generation Intel Core processor in the LGA1151 package with Intel Q170 Express chipset (codename: Skylake).

More on This

Axiomtek’s ICO120-83D - An Industrial IoT Gateway Enables Quickly Connect IoT Devices to the Cloud

Axiomtek has announced the upcoming availability of ICO120-83D, an industrial IoT gateway designed to simplify device-cl...

Axiomtek’s Five Products Wins Taiwan excellence 2018

Axiomtek announced that Axiomtek was named a winner for “Taiwan Excellence 2018”. Axiomtek’s award-winning products this time include tBOX324-894-FL...

The high performance SHB-based CPU card supports PCI Express Gen 3.0 with data rates up to 8.0 GT/s and comes with two DDR4-2133MHz un-buffered DIMM sockets supporting up to 32 GB. Combined high-bandwidth PCI Express for frame grabbing and conventional PCI expansion for motion capture, the Intel Skylake SHB140 is an optimum solution for machine vision and smart factory automation applications. This high performance PICMG 1.3 slot SBC also features an integrated Intel AMT 11 and TPM 1.2 for higher security and easier maintenance.

In terms of rich I/O ports, the Axiomtek SHB140 offers ten USB 2.0 ports, two USB 3.0 ports, two gigabit LAN ports, DVI-I, HD audio, one RS-232/422/485 port, five RS-232 ports, and six SATA-600 supporting RAID 0/1/5/10. Additional expansion interface options include one PCIe x16 Gen 3, one PCIe x4 Gen 2 or four PCIe x1, and four 32 bit PCI bus masters. The powerful industrial single board computer provides reliable operation with watchdog timer.

The new 6th generation Intel Core-based SHB platform, SHB140, is fully compatible with Axiomtek's PICMG 1.3 full-size passive backplanes, and we offer various industrial housing enclosures and have the capability to assist with any customer's industrial integration requirements.

Additionally, its LPC bus offers a low-cost and straightforward way to continue using legacy devices.

Features:

- LGA1151 6th generation Intel Core processor (formally codename: Skylake)

- Intel Q170 Express chipset

- Two DDR4-2133 un-buffered DIMM sockets up to 32 GB

- Intel AMT 11 and TPM (optional) supported

- PCIe Gen. 3 at 8GT/s supported

- Six SATA-600 with RAID 0/1/5/10

- USB 3.0, SATA3 supported
