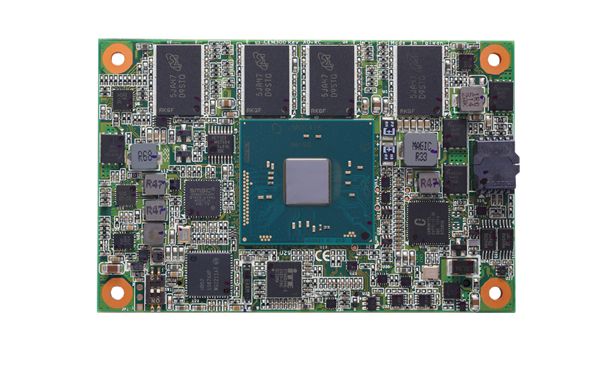

Integrated with Intel Gen 8 graphics, the COM Express Type 10 computer-on-module provides excellent graphic performance. It supports DirectX11.1,OpenGL 4.2, and 3D features and resolution up to 4K (3840 x 2160 @ 30 Hz). The ultra-small mini module comes with 4 to 6 watts low power consumption, and provides wide range voltage power input of 4.75V to 20V for harsh industrial environments. The Axiomtek CEM300 is ideal for IIoT-connected industrial controls, medical imaging, retail equipment, MMK (Multi Media Kiosk), industrial gateway, automation and POS terminals related applications.

“The Axiomtek’s new CEM300 is designed to lower development costs and reduce time to market. Featuring flexible expansions, the rugged pocket-size COM Express Type 10 mini module allows users to take benefit from its versatile and rugged design. The delivery of better graphics and imaging also makes it an outstanding multimedia solution,” said Yifei Wang, product manager of EPIC PM Division at Axiomtek. The COM Express pin-out type 10 definition in the mini form factor (84 x 55 mm) is well-suited to match the feature and performance requirements of the segments of the embedded market delivering ultra-small as well as flexible customization solutions.

Graphics outputs include one LVDS (18/24-bit single channel) and one DDI port supporting HDMI/DVI/DisplayPort. Optionally an embedded DisplayPort (eDP) is also available. More high-bandwidth I/O interfaces include four PCI Express lanes, two SATA-600, one Gigabit LAN, two USB 3.0, eight USB 2.0, and four digital I/O channels. The LPC bus is available for easy connection of legacy I/O interfaces.

For evaluation and development purposes, Axiomtek also provides CEB94008, the COM Express type 10 carrier board to operate with CEM300 for supporting rich I/O and expansions interfaces. To ensure reliability and stability, hardware monitoring and Watchdog Timer are supported. This powerful Intel Braswell SoC quad-core COM Express Type 10 mini embedded board runs under Windows 7/8.1/10 and Linux operating systems and supports Axiomtek AXView 2.0, intelligent remote management software.

In order to quickly access up-to-date documents, Axiomtek Technical Portal (ATP) allows users to download technical design guides, mechanical 2D/3D drawings, and software utilities simply through ATP web page.
