Hybrid Planar Transformers Offer Lower Cost, Smaller Packages

Published: Dec 12,2016

590 Read

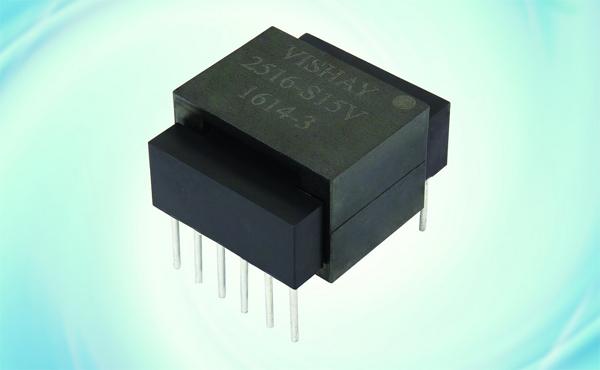

Vishay Intertechnology introduced a new series of 250 W full-bridge hybrid planar transformers for avionics, industrial control, and alternative energy control applications. Featuring a unique winding structure, TPL-2516 series devices provide a cost-effective solution compared to traditional planar transformers while featuring smaller packages, improved performance, and easy customization.

More on This

New Vishay Intertechnology Wireless Charging Coils Offer Direct Replacements for EOL Devices

Vishay Intertechnology introduced new powdered iron based, WPC-compliant (Wireless Power Consortium) wireless charging c...

Vishay Intertechnology Introduces New Commercial Inductors in Compact 1212 Case Size

Vishay Intertechnology, Inc. introduced three new commercial IHLP low profile, high current inductors in the 3.3 mm by 3...

The winding structure of the devices released today allows for a greater copper fill factor than traditional planar transformers, resulting in smaller overall package sizes, a low 16.51 mm maximum profile, and higher power density levels. The unique winding technology also allows the parts to be easily and quickly modified for custom voltage / power applications with no upfront tooling charges to the customer.

Featuring a split primary design for efficient 120 V or 380 V operation, TPL-2516 series transformers are optimized for offline and PFC-derived switchmode power supplies and full-bridge / half-bridge converters. Designed to meet MIL-PRF-27 requirements, the devices feature overmolded windings for rugged applications and are environmentally sealed for operation in harsh environments.

The TPL-2516 series features operating frequencies from 100 kHz to 500 kHz, power dissipation of 3 W, rated current to 22.0 A, leakage inductance down to 1.30 µH, and minimal parasitic variation. The devices offer a temperature range of -55 °C to +130 °C, with power derating above +105 °C.
