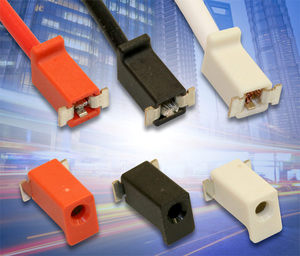

Carefully tooled to effectively compete against hand soldering processes, which are all but completely devoid of materials costs, the new 58-9296 Series single position, vertical poke-home connectors finally provide design engineers with a compact, cost-effective, and electrically and mechanically reliable alternative to hand soldering.

Featuring a unique, stamped and formed phosphor bronze box contact that maximizes both board attachment and wire capturing strength, the new vertical poke-home connectors are 23% smaller than existing vertical connector solutions, allowing them to fit into the extremely tight spaces between larger, densely populated plated through hole (PTH) components, and have tight tolerances in critical areas to minimize the potential for ingress resulting from the secondary potting or epoxy encapsulation processes commonly employed to protect industrial electronics from water and other harsh environmental hazards.

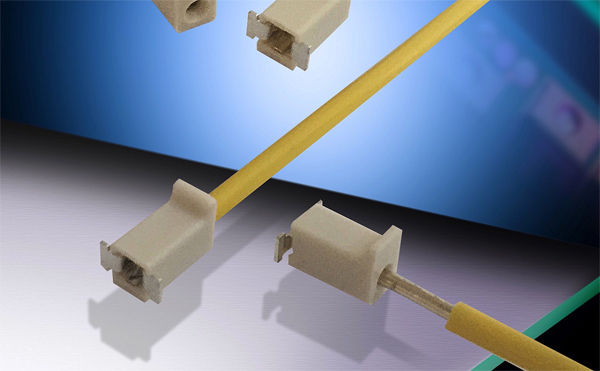

The series’ robust, single beam, phosphor bronze box contact securely captures and retains solid, 18AWG wires; exhibits excellent spring performance, high fatigue, and corrosion resistance; and reliably withstands the mechanical and environmental stresses associated with large, 18AWG wires in industrial applications, including: industrial machine controls, power supplies, motors, drives, solenoids, sensors, fans, and pumps; commercial building controls and security and fire sensors; smart grid meters, breakers, and panels; and SSL/LED drivers, fixtures, signage, and streetlights.

Rated for 8A, 600VAC, and operating temperatures spanning -40°C to +130°C, the new 58-9296 Series connectors also feature lead-free, tin plating that enhances corrosion resistance and contact strength, dual solder tabs that effectively anchor the connector onto PCBs, and, instead of costly Kapton tape, an integral molded flange with a generous vacuum pick-up point for automated SMT placement. The RoHS compliant series is also rated for three-cycle durability, allowing for up to two wire replacements over the product’s lifetime, and is packaged on tape and reel.
