Portwell's First SMARC Module with Low Power X86-based CPU

Published: Feb 09,2017

594 Read

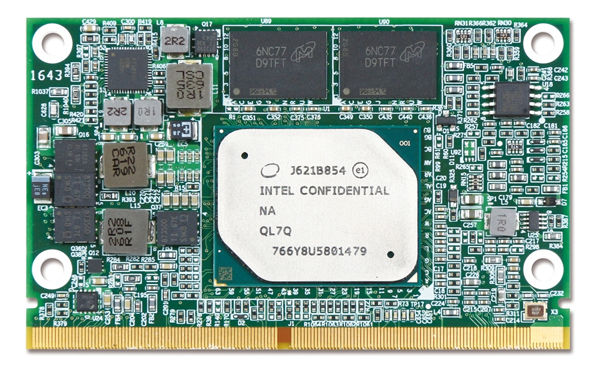

Portwell announced PSMC-M101, its first SMARC module with x86 based processor. The PSMC-M101 model series (82x50mm), is based on Intel latest 14nm Atom, Celeron and Pentium processors (code named Apollo Lake).

More on This

Portwell Launches the WEBS-13D1 Rugged Fan-less Embedded System Featuring Intel Atom E3900 Family

Portwell announces the launch of the WEBS-13D1 fan-less embedded system featuring Intel Atom processor E3900 product family (codenamed Apollo Lake)...

Portwell Releases the WEBS-21D0, a fan-less Embedded System Featuring Intel Atom E3900 series

Portwell announces the release of the WEBS-21D0, a fan-less embedded system featuring Intel Atom processor E3900 series (formerly Apollo Lake)...

The new Intel Atom processor E3900 product family integrates the Intel Gen 9 3D graphics engine with up to 18 EUs (Execution Units) that improves the performance and supports 4K Codec Decode & Encode. In addition to improved graphics capability, the new PSMC-M101 SMARC 2.0 module series is designed with 2400MT/s speed LPDDR4 up to 8GB.

The PSMC-M101 is also embedded with Infineon’s OPTIGA TRUST IC which is designed to protect embedded systems from unauthorized accessories, replacement parts or disposables. With the unique Infineon data authentication feature, a field system with Portwell PSMC-M101 module inside is capable of offering protection against unauthorized re-use or re-provisioning of original parts.

Also together with SGeT newest improved and particularly rich feature set on SMARC 2.0 specification, it is believed that the credit card-sized module will offer major advancements in technology and performance soon to replace previous SMARC 1.1 based designs.

The SMARC 2.0 based PSMC-M101 supports up to 8GB of LPDDR4 (2400MT/s) RAM. In addition to supporting Linux and Windows 10 like the other modules, the PSMC-M101 also supports Android, Microsoft Windows IoT Core, and VxWorks 7 on request. And despite the supposed lack of eMMC compatibility in SMARC 2.0, the module supports up to 64GB of eMMC 5.0.

The multimedia features on PSMC-M101 include dual-channel LVDS (up to 1920 x 1200 @60Hz), which can be swapped out for eDP, DisplayPort 1.2 (up to 4096 x 2160 pixels) and HDMI 1.4b (up to 3840 x 2160), as well as 2x MIPI-CSI camera interfaces.

The PSMC-M101 is further equipped with 2x USB 3.0(1x OTG), 6x USB 2.0(1x OTG), 1x SDIO3.0, 1x SATA 3, and 4x PCIe Gen 2 lanes. Also onboard are 1x I2C, 1x SPI(eSPI support), 4x UART, 12x GPIO, 1x I2S, and HD audio featuring an integrated audio DSP with Intel Smart Sound Technology. The module includes Portwell’s Board Controller and ACPI 5.0 power management, and can handle industrial -40 to 85°C temperatures.
