Portwell's New Module Solution with the 7th Intel Mobile H Series CPU in Basic Size

Published: Mar 15,2017

848 Read

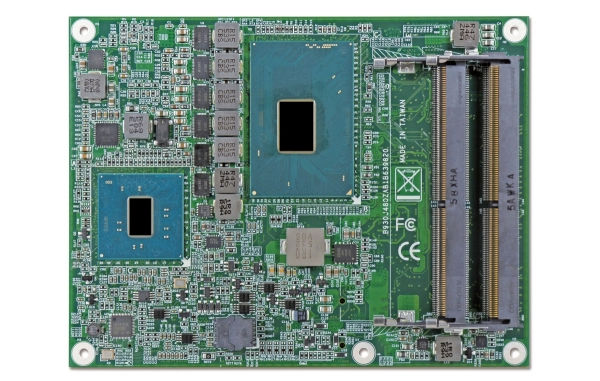

Portwell announces the release of the PCOM-B643VG, a COM Express Type 6 Basic Module(125mm x 95mm) based on the 7th Generation Intel Core mobile processor (codenamed Kaby Lake-H) and Intel QM175 and CM238 express chipset. This module includes Intel Turbo Boost Technology for faster processing, Intel vPr Technology for superior remote capabilities and Intel Hyper-threading Technology for multithreading.

More on This

Portwell Launches an Advanced SFF Embedded System Board with Intel Celeron Processor J3455

Portwell, Inc., a innovator for Industrial PC (IPC) and embedded computing solutions, and an associate member of the Intel Internet of Things (IoT) Solutions Alliance...

Portwell Releases a Palm-sized Fan-less Embedded System Utilizing the Latest Intel Apollo Lake SoC

Portwell announces the release of the WEBS-7000, a palm-sized fan-less embedded system featuring the latest 14nm Intel P...

Supporting three symmetric independent displays, the PCOM-B643VG is designed with the 7th Generation Intel Core Processor, built on 14nm process technology utilizing multi-stream technology, resulting in up to double the performance of the integrated GPU and improved energy efficiency. These features translate into reduced manageability cost and improved security capability, making the PCOM-B643VG an ideal solution for Medical Healthcare Systems, Retail Systems, Network Systems, Digital Signage and IoT Solutions.

The Portwell PCOM-B643VG COM Express module supports DDR4 2133MT/s SDRAM on two SO-DIMM sockets, up to 32GB; two DisplayPort, one VGA, and one LVDS output; 4x USB 3.0, 4x USB 2.0; 4x SATA III; 8x PCIe x1, 1x PCIe x16; 1x GbE; and wide voltage support from 6V to 18V. Specifically, the PCOM-B643VG COM Express module supports up to 32GB ECC (supported by CM238 chipset only) and non-ECC DDR4 up to 2400MHz on two 288-pin SO-DIMM sockets, making it faster than its predecessor.

Its expansion interface supports one PCI Express x16 Gen3 (8.0GT/s) for enhanced video performance, 1.6 times faster than the previous Gen2 (5.0GT/s), and eight PCI Express x1 Gen3 (8.0 GT/s). Furthermore, PCOM-B643VG supports three independent displays, DP (DisplayPort), VGA and eDP with greater 3D performance compared to its previous generation. Operating with a low TDP CPU (25/35/45 watts), the PCOM-B643VG can deliver superior performance in various environments.

Designed with flexibility, the PCOM-B643VG is developed on a basic 125mm x 95mm platform, and with the Intel QM175 and CM238 mobile chipsets functioning smoothly with the 7th Generation Intel Core mobile processors which come in 14nm architecture with lower power consumption, better computing power, and better graphic performance along with enhanced media codec encode and decode capabilities. These features enable our customers to preserve their legacy components and subsequent investments while minimizing turn-around time – all of which ensures that the costs of inevitable upgrades are minimal.

As the markets evolve, Portwell’s versatile COM Express modules adapt to the changes by enabling designers to partition commodity host-processors from proprietary baseboards, thereby minimizing current and future design risks during the initial phase of development. This design of separating the CPU-upgradable module from system specific I/O carrier boards further safeguards development investments and lowers total cost of ownership.

In addition, Portwell can also provide services to clients on the carrier board design and development, review schematics and BIOS customization. At Portwell, we strive to create superior products for our customers.
