The new S-5718 series of products are Hall effect switch ICs capable of omnipolar and single-pole detection. The product is equipped with three types of detection capabilities: a type that detects both poles (both S pole and N pole), a type that detects only S pole, and a type that detects only N pole.

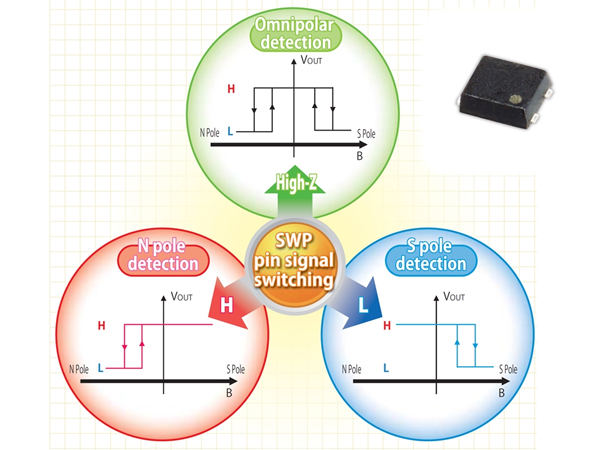

When there is no input to the SWP pin (High-Z), omnipolar detection is enabled. High input voltage to the SWP pin switches to N pole detection, while low input voltage switches to S pole detection. This, when combined with a microcontroller, allows the polarity of nearby magnets to the identified. By detecting the polarity of magnets it is possible to switch operations, determine accessory types, or respond in other ways.

The S-5718 is among the best in the industry for low voltage operation down to 1.45V. The product has also been equipped with a wide hysteresis component that can obtain stable output results even in environments where magnetic distances are susceptible to change. The series is available in the super small SNT-4A (1.6 × 1.2 × 0.5mm) package.
