TB67S111PG incorporates four channels of each low-side MOSFET and regenerative common diode. This enables it to control all output MOSFETs independently and realizes a design that is suited to driving the solenoids and unipolar motors widely used in such applications as amusement equipment (pachinko and slot machines), home appliances (air-conditioners and refrigerators) and industrial equipment (vending machines, banking terminals such as ATMs, office automation equipment and factory automation equipment).

Fabricated with the latest high-voltage analog power process, BiCD 130nm, the motor driver IC achieves an output rating of 80V and reduces IC heat generation by lowering the output ON resistance [1] to 0.25Ω.

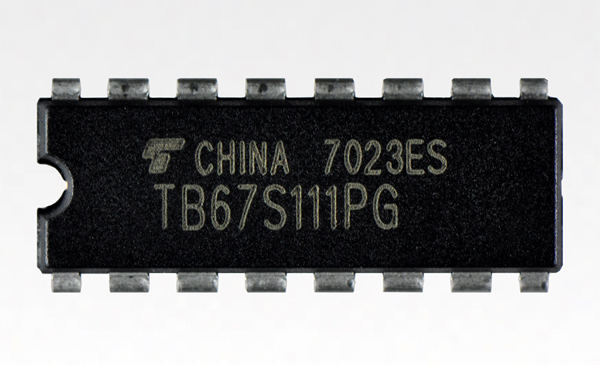

The IC is packaged in a high heat dissipation H-frame DIP package that can be mounted on low-cost paper phenol board and on a general glass-epoxy board.
