True Green LEDs in Tiny SMD 0603 ChipLED Package

Published: Jun 22,2017

739 Read

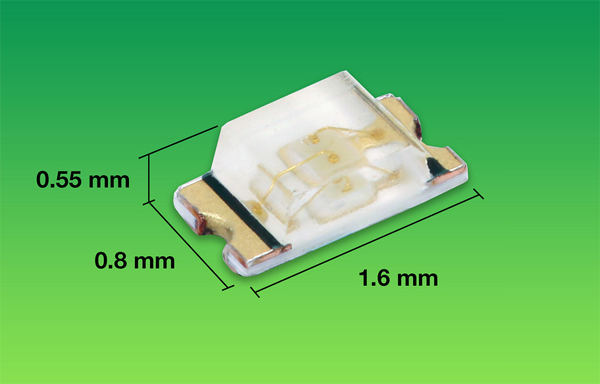

The Optoelectronics group of Vishay Intertechnology, Inc. introduced a new series of true green LEDs in a compact surface-mount 0603 ChipLED package. Measuring 1.6 mm by 0.8 mm with an ultra thin 0.55 mm profile, the VLMTG1400 series devices utilize the most recent ultrabright InGaN chip technology to achieve industry-high luminous intensity up to 2,800 mcd.

More on This

New Vishay Intertechnology TMBS Rectifiers in MicroSMP Package Save Significant Space

Vishay Intertechnology expanded its offering of surface-mount TMBS Trench MOS Barrier Schottky rectifiers with 10 new 1 ...

Vishay Intertechnology Sensitivity Proximity and Ambient Light Sensor Offers Increased Proximity Det

The Optoelectronics group of Vishay Intertechnology announced a new sensitivity proximity and ambient light sensor that combines long distance proximity detection up to 1...

With their high brightness and small size, the PCB-based devices released today are the perfect choice for small scale products that are expected to work reliably in arduous environments. The LEDs provide designers with increased design-in flexibility and high performance in backlight keypads and displays for navigation systems, cell phones, industrial control systems, and traffic signals and message boards.

The VLMTG1400 series features luminous intensity from 1,200 mcd to 2,800 mcd at 20 mA, a typical wavelength of 525 nm, and forward voltage from 2.75 V to 3.2 V. The devices are grouped by luminous intensity, wavelength, and forward voltage, and they offer an extremely wide viewing angle of 146°.
