Toshiba's New Three-phase Brushless Motor Drivers

Published: Jun 22,2017

553 Read

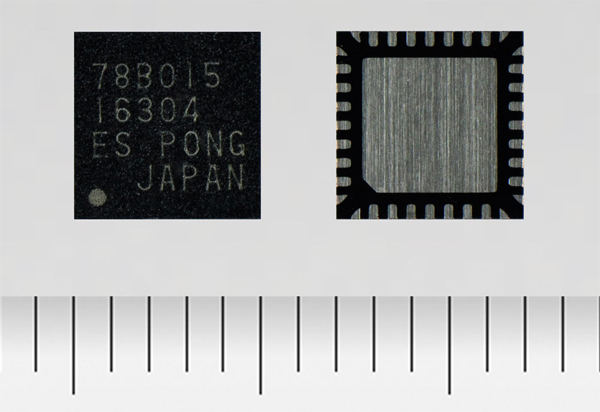

Toshiba Corporation's Storage & Electronic Devices Solutions Company today announced the launch of the three-phase brushless motor drivers “TC78B015FTG” for 12V power supply and “TC78B015AFTG” for 24V power supply. The new ICs support high speed rotation of small fan motors suited to home appliances and industrial equipment. Mass production starts today.

More on This

Toshiba Releases 650V Super Junction Power MOSFETs in TOLL Package

Toshiba has launched 650V super junction power MOSFETs, TK065U65Z, TK090U65Z, TK110U65Z, TK155U65Z and TK190U65Z, in its...

Toshiba Launches 100V High-Current Photorelay for Industrial Equipment

Toshiba has launched "TLP241B," a high-current photorelay in a DIP4 package for industrial equipment such as programmable logic controllers and I/O interfaces...

Ideally, cooling fans, such as server fans, combine minimized size with a high rotation speed that ensures a high cooling capability. Toshiba’s new products adopt small packages that can be mounted on the limited board space of small motors. They also reduce the external component count with a one-sensor drive and current detection resistor-free system.

One-sensor driving secures more reliable motor operation than a sensorless drive and reduces the number of hall sensors from three (required for a 3-sensor drive) to one. The current detection resistor-free system can reduce rated power supply and eliminate the large resistors previously required. These all contribute to reduced demand for space on wiring boards.

High speed rotation is achieved with a 150-degree commutation system. Rotation is faster and more stable than with a sine-wave commutation system, and vibration is lower than in a conventional 120-degree commutation system. Adoption of low on-resistance (upper + lower: 0.24Ω (typ.)) ensures suppression of heat generated from increased motor current by a high frequency drive, realizing support of a large current drive of up to 3A.
