Littelfuse TVS Diode Arrays with High Surge Tolerance Protect DC Powerlines for PoweredUSB Interface

Published: Jul 10,2017

608 Read

New series of TVS Diode Arrays optimized to protect DC powerlines for PoweredUSB interfaces from damaging electrostatic discharges.

Littelfuse announced a series of TVS Diode Arrays (SPA Diodes) optimized to protect DC powerlines for PoweredUSB interfaces from damaging electrostatic discharges (ESDs).

More on This

Littelfuse 500VAC-Rated Ceramic-Body Fuses

Littelfuse introduced a series of compact, fast-acting 500VAC ceramic body fuses with current ratings ranging from 1.6A to 12...

Vishay Intertechnology ENYCAP Electrical Double-Layer Energy Storage Capacitors

Vishay Intertechnology announced an extension to its 220 EDLC ENYCAP series of electrical double-layer energy storage capacitors for energy harvesting...

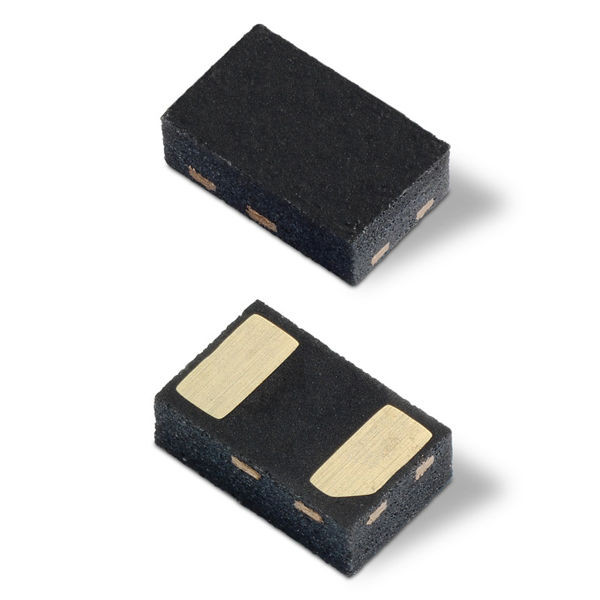

SP11xx Series TVS Diode Arrays employ Zener diodes fabricated in a proprietary silicon avalanche technology to protect each I/O pin in the interface. These devices offer high surge tolerance, and extremely low dynamic resistance across all of the relevant voltage levels for PoweredUSB interfaces.

They can safely absorb repetitive ESD strikes at ±30kV without performance degradation and safely dissipate 80A of 8/20μs surge current with very low clamping voltages.

SP11xx Series TVS Diode Arrays are designed to prevent premature failure or thermal issues related to fast-charging batteries, such as those used in tablets and smartphones, by limiting exposure to the fast transients associated with plugging into AC/DC converters that could introduce dirty power to the battery.

They are also useful for protecting Vbus lines for USB 3.1 type C interfaces, which are increasingly common in handheld devices.

Additional applications for SP11xx TVS Diode Arrays include ESD protection for switches/buttons, test equipment/instrumentation, point-of-sale terminals, medical equipment, notebooks/desktops/servers, computer peripherals and automotive electronics.

“The SP11xx Series combines high surge tolerance for ESD protection and extremely low dynamic resistance for faster response,” said Tim Micun, business development manager for TVS Diode Arrays at Littelfuse.

SP11xx Series TVS Diode Arrays offer extremely low dynamic resistance (RDYN) ensures a faster response to ESD transients for better performance.

Discrete unidirectional design is the most appropriate solution for DC interfaces and provides the lowest dynamic resistance available. Flat surge performance across current profiles provides greater protection during extreme surge or ESD events.
