Vishay Intertechnology WSBS8518…40 Power Metal Strip Battery Shunt Resistor Improves Accuracy

Published: Jul 25,2017

525 Read

The Vishay Intertechnology new power metal strip battery shunt resistor improves accuracy, and provides consistent contact location.

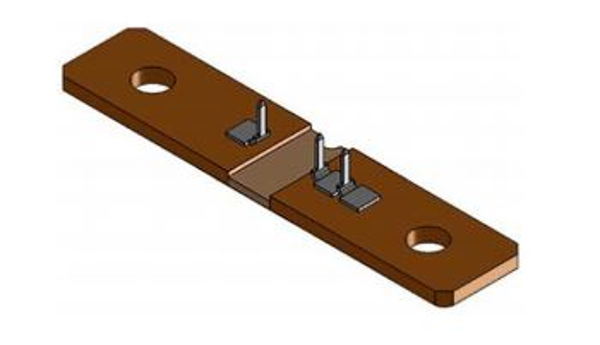

Vishay Intertechnology announced a 36 W Power Metal Strip battery shunt resistor featuring three sense pins in the 8518 case size.

More on This

Vishay Intertechnology HI-TMP Wet Tantalum Capacitors Offer Increased Reliability for Industrial and

Vishay Intertechnology, Inc. introduced a new series of HI-TMP tantalum-cased, hermetically sealed wet tantalum capacitors with high temperature operation to +200 °C...

Vishay Intertechnology RF MLCCs provides Industry's First Operating Temps to +200 °C in Small Cases

Vishay Intertechnology introduced new surface-mount multilayer ceramic chip capacitors (MLCCs) for high frequency RF and...

With extremely low resistance values down to 50 µΩ, the Vishay Dale WSBS8518...40 increases accuracy and lowers costs compared with Hall Effect current sensing solutions, while its sense pins assist in PCB mounting, provide consistent contact point location, and offer a connection to ground via the third sense pin.

The three sense pin device released features a proprietary processing technique that produces extremely low resistance values of 50 µΩ, 100 µΩ, and 125 µΩ.

These low values allow for more accurate data to determine battery charge and discharge, thus helping designers meet specific customer battery management requirements for applications in gas, diesel, hybrid, and electric cars and trucks, as well as electric forklifts, UPS systems, and other heavy industrial applications.

The WSBS8518...40 features a solid metal manganese-copper alloy resistive element with low TCR (± 20 ppm/°C) and a welded terminal to element connection that allows for up to 848 A of continuous current (value dependent).

The resistor offers low inductance values of < 5 nH, low thermal EMF down to < 1 µV/°C, and an operating temperature range of -65 °C to +170 °C. The device is RoHS-compliant, halogen-free, and Vishay Green.
