After two successful years with the Basler Original lens series 1/2.5″, the family of Basler Lenses has new members: I...

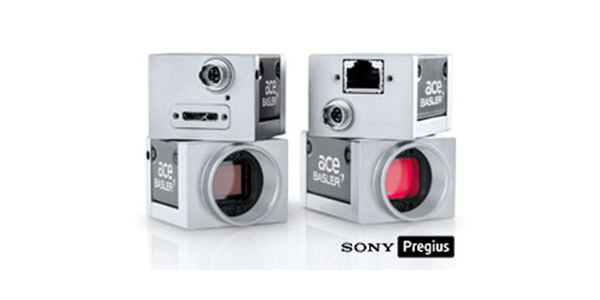

The twelve new ace L models offer resolutions of 9 and 12 megapixels and frame rates of up to 40 fps. Featuring the high-performance IMX253, IMX255, IMX267 and IMX304 sensors, they offer the well-known brilliant Pregius image quality with a dynamic range of more than 70 dB and a high quantum efficiency over a broad spectrum of visible light into the NIR.
Thanks to these properties, the cameras are also an excellent choice for highly demanding applications. This includes, for example, high-resolution AOI systems for display inspection or enforcement systems in the ITS market.
In addition to their high image quality and an excellent price/performance ratio, the twelve ace L models stand out with their compact design size, which has a footprint of 30 mm x 40 mm to accommodate the new large-format sensors and thus ensures a simple integration.
All new ace L models are available with the proven GigE or USB 3.0 interface, and conform to GigE Vision 2.0 or the USB3 Vision standard. The GigE models excel with high-performance GigE Vision 2.0 features such as PTP. The ace L color models also include the unique PGI Feature Set for in-camera image optimization.
The twelve ace L models supplement Basler’s product range with additional high resolutions in the C mount portfolio while using a global shutter with a pixel size of 3.45µm. Basler’s new 1-inch lenses are a perfect fit for these sensors. Integration of the cameras is simple and quick using the pylon Camera Software Suite from Basler.
