Portwell Releases Intel Atom C3000 Series-based COM Express 3.0 Type 7 Basic Module

Published: Aug 16,2017

679 Read

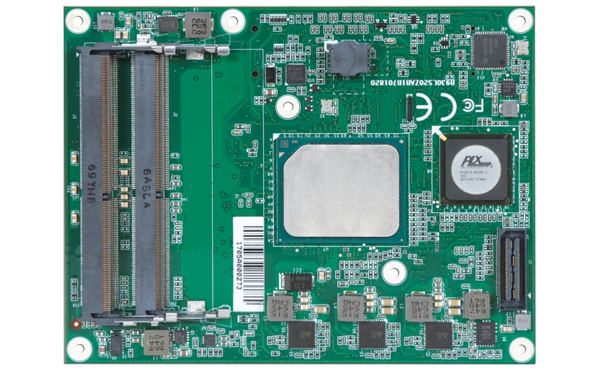

Portwell announces the release of the PCOM-B701, a COM Express 3.0 Type 7 Basic Module (125mm x 95mm) based on the Intel Atom processor C3000 product family (formerly codenamed Denverton).

More on This

Portwell Announces PICO-6260 PICO-ITX Form Factor Embedded System Board

Portwell announces the release of the PICO-6260 (100mm x 72mm) Pico-ITX embedded system board based on the Intel Atom processor E3900 series and Intel Celeron processor N3350...

Portwell Launches the WEBS-13D1 Rugged Fan-less Embedded System Featuring Intel Atom E3900 Family

Portwell announces the launch of the WEBS-13D1 fan-less embedded system featuring Intel Atom processor E3900 product family (codenamed Apollo Lake)...

The Portwell PCOM-B701 is designed according to the new COM Express Type 7 standard which is a new specification with backward compatibility to the existing Type 6 pinout. While the focus of Type 6 is on display-oriented applications with support for audio and video interfaces, the Type 7 pinout definition is designed for applications that do not require graphics support.

Specifically, the COM Express 3.0 specification's Type 7 pinout, when compared to the Type 6 pinout, trades all the graphics interfaces for up to four 10GbE ports, and a total of 32 PCIe lanes. This makes it ideal for applications in micro server and the like that require low power consumption while supporting high computing performance and communication throughput.

Portwell has designed this new PCOM-B701 COM Express Type 7 module to optimize value models and service levels by running network applications securely and reliably on virtualization-optimized platforms. This latest addition extends Portwell's product family of datacenter COM Express based platforms to enable solutions with even lower power consumption and higher physical density.

Designed with an extensive feature set, the Portwell PCOM-B701 COM Express Type 7 module is developed on a basic 125mm x 95mm footprint with three DDR4 SO-DIMM slots, up to 48GB dual-channel DDR4 at 1866/2133/2400MHz ECC (selected SoC SKUs), up to 12x PCIe 2.0 x1, 1x PCIe 3.0 x8, 2x SATA 6Gb/s, 1x eMMC 5.0 (optional), and 4x USB 3.0/2.0.

Moreover, it is also offered with an option for wide operating temperature support with the range of -40°C to +85°C (selected SoC SKUs). All in all, the Portwell PCOM-B701 module practically implements the Intel Atom processor C3000 product family's distinguished features to facilitate broader applications into entry industrial, military/aerospace, energy, robotics and IoT that requires very low power, high density and high I/O integration.

As the markets evolve, Portwell's versatile COM Express modules adapt to the changes by enabling designers to partition commodity host-processors from proprietary carrier boards, thereby minimizing current and future design risks during the initial phase of development. This design of separating the CPU-upgradable module from system specific I/O carrier boards further safeguards development investments and lowers total cost of ownership.

With Portwell's ready Type 7 evaluation carrier, PCOM-C700, customers can easily start to evaluate and design. In addition, Portwell can also provide services to clients on the carrier board design and development, review schematics and BIOS customization. At Portwell, we strive to create superior products to help our customers deliver products to market on time and stay one step ahead of the competition.
