Fast 60V High Side N-Channel MOSFET Driver Provides 100% Duty Cycle Capability

Published: Sep 08,2017

603 Read

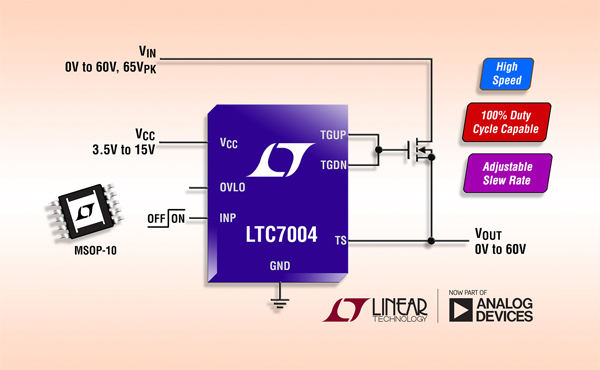

Analog Devices announces the LTC7004, a high speed, high side N-channel MOSFET driver that operates up to a 60V supply voltage. Its internal charge pump fully enhances an external N-channel MOSFET switch, enabling it to remain on indefinitely. The LTC7004’s powerful 1Ω gate driver can easily drive large gate capacitance MOSFETs with very short transition times and 35ns propagation delays, well suited for both high frequency switching and static switch applications.

More on This

40VIN, 2A Silent Switcher µModule Regulator in 6.25mm x 4mm BGA Package

Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTM8063, a 40VIN, 2A µModule step-down regulator in a tiny 6...

Silent Switcher, 42VIN, 2.5A µModule Regulator in 6.25mm x 6.25mm BGA Package

Analog Devices, Inc., announces the LTM8065, a µModule (power module) step-down regulator with up to 40V input voltage (42V abs max)...

The LTC7004 is designed to receive a ground-referenced, low voltage digital input signal and quickly drive a high side N-channel power MOSFET whose drain can be between 0V and 60V (65V abs max). The LTC7004 operates from a 3.5V to 15V driver bias supply range with an adjustable undervoltage lockout. The fast 13ns rise and fall times, when driving a 1,000pF load, minimize switching losses. Other features include an adjustable turn-on slew rate and an adjustable overvoltage lockout.

The LTC7004 is available in the MSOP-10 package with pins configured for high voltage spacing. It is available in three operating junction temperature ranges of extended and industrial versions from –40°C to 125°C, a high temperature automotive version from –40°C to 150°C and a military grade from –55°C to 150°C. The 1,000-piece price starts at $2.05 each.
