Toshiba Announces New Line-up of Stepping Motor Driver ICs with Anti-Stall Feedback Architecture

Published: Sep 14,2017

568 Read

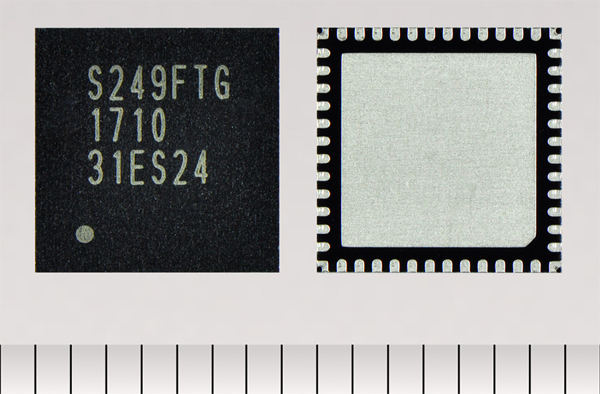

Toshiba Electronic Devices & Storage Corporation (TDSC) announced the addition of two stepping motor drivers, 4.5A “TB67S249FTG” and 2A “TB67S279FTG,” to its line-up of stepping motor drivers with innovative anti-stall feedback architecture, which realizes highly efficient motor control.

More on This

Toshiba Releases Automotive 40V N-channel Power MOSFETs in New Package

Toshiba Electronic Devices & Storage Corporation has released two new MOSFETs “TPHR7904PB” and “TPH1R104PB” housed in the small low-resistance SOP Advance (WF) package...

Toshiba Releases Medium-voltage Photorelay in Small 4-pin SO6 Package for Factory Automation

Toshiba Electronic Devices & Storage Corporation has released “TLP176AM,” a new photorelay in a small 4-pin SO6 package...

Stable, highly precise control is a basic operating requirement for motors used in printers and other office equipment, banking terminals, amusement machines, and home appliances. Demand for more efficient motor operation and lower heat generation increases year by year as the scope of application increases.

Avoiding stalls in stepping motor operation is the highest priority in securing stability and precise control, and is achieved by providing additional current that gives motors an operating torque margin. However, although it prevents stalls, the additional current decreases efficiency and generates heat. Complicated adjustments involving monitoring torque in real time with additional sensors and microcontrollers, and controlling the motor current are required to improve efficiency, reduce heat generation and prevent stalls.

The new products follow “TB67S289FTG,” the first stepping motor to incorporate original anti-stall active gain control (AGC). TB67S249FTG supports an industry-leading large drive current of 4.5A, 1.5 times that of TB67S289FTG. TB67S279FTG, with a current rating of 2A, delivers excellent cost performance compared with TB67S249FTG. All three products are compatible in packages, pin alignments and functions, allowing easy replacement among them. They enable optimal selection according to their applications, driving conditions, and purpose of use.

Like TB67S289FTG, TB67S249FTG and TB67S279FTG can also monitor motor operation and torque without an additional MCU, and optimize motor control and efficiency by applying AGC. They prevent motor stalls and automatically optimize motor current depending on the torque needed, reducing motor power consumption by up to 80%, compared with other solutions. They realize significant improvements in efficiency and heat generation without relying on on-resistance.

Further efficiencies can also be achieved when these stepping motor drivers are supported by advanced current detection system (ACDS), the innovative sense-resistor-free current monitor and control system, which allows more free space and uses fewer external components on the PCB.

The application of advanced automation systems, including ACG, achieves a series of products offering high performance motor control with a low component count. TDSC positions the new series as its flagship line of stepping motor drives, and will continue to expand the line-up.
