Axiomtek’s ICO120-83D - An Industrial IoT Gateway Enables Quickly Connect IoT Devices to the Cloud

Published: Oct 19,2017

592 Read

Axiomtek has announced the upcoming availability of ICO120-83D, an industrial IoT gateway designed to simplify device-cloud connection and accelerate industrial internet of things development. It was specifically designed for smart energy and smart automation fields that need to collect and transfer data from large numbers of end devices.

More on This

Axiomtek’s eBOX560-512-FL – A Palm-sized Embedded System with 4K Resolution

Axiomtek has launched the eBOX560-512-FL, an extremely compact embedded system powered by the Intel Core i5-7300U or Celeron 3965U processor (formally codename: Kaby Lake)...

Axiomtek’s Five Products Wins Taiwan excellence 2018

Axiomtek announced that Axiomtek was named a winner for “Taiwan Excellence 2018”. Axiomtek’s award-winning products this time include tBOX324-894-FL...

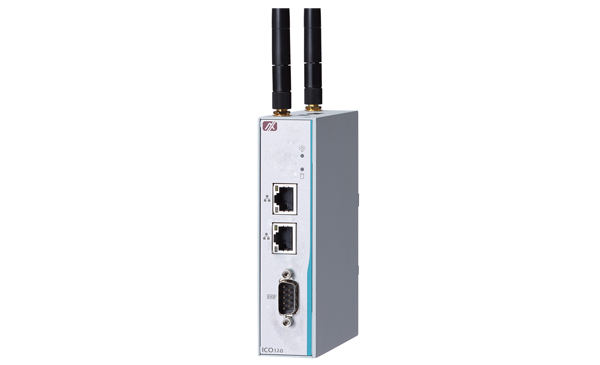

Axiomtek’s brand new ICO120-83D is powered by the Intel Celeron processor N3350. The embedded filed controller supports one DDR3L-1866 SO-DIMM slot with up to 8 GB of system memory. It is equipped with one full-size PCI Express Mini Card slot, one half-size PCI Express Mini Card slot in support of mSATA, and one SIM socket to provide flexible extension capability.

The ICO120-83D measuring only 31 x 100 x 125 mm is well-suited for space-constrained deployments. It offers an IP40 extruded aluminum and heavy-duty steel design for durable use. This powerful industrial IoT gateway can withstand harsh operating conditions with an extended temperature range of -20°C to 70°C and vibration resistance up to 2G.

Additionally, the unit supports a wide voltage range of 12V to 24V DC power input with overvoltage and reverse protection.

The Intel Apollo Lake-based DIN-rail PC comes with one RS-232/422/485 port (optional - one additional CANbus), two USB 2.0 ports, two Gigabit Ethernet (Intel i211AT controller with magnetic isolation protection 1.5KV), one mSATA, one DB15 VGA connector, and one 8-bit programmable female DIO connector.

Furthermore, the system runs well with Windows 10 IoT and Linux operating systems. It also offers Axiomtek’s exclusive AXView 2.0 software for smart device monitoring and remote management.

Axiomtek's ICO120-83D, an Industrial IoT gateway, is going to be available around early December 2017.
