Axiomtek’s Modular Transportation Embedded PC with E-Mark, EN 50155 and DNV 2.4 certified

Published: Dec 06,2017

256 Read

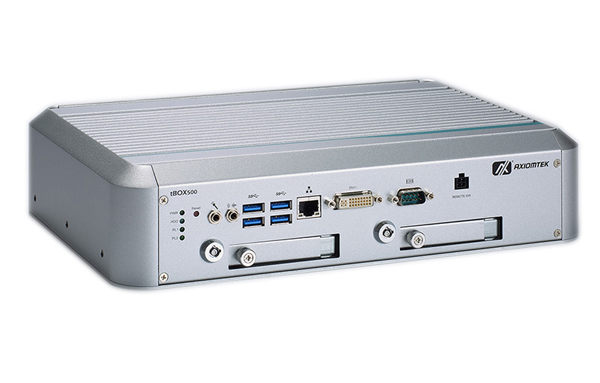

Axiomtek announced the arrival of the tBOX500-510-FL, a modular powerful fanless embedded system featuring vehicle, railway and marine-related certifications, industrial grade temperatures and various I/O connectors.

More on This

Axiomtek’s MPC102-845 – EN 60601-1 Certified 10.4” Medical-grade Touch Panel PC

Axiomtek announced its newest EN 60601-1 certified 10.4” medical-grade panel PC, the MPC102-845. This compact medical ...

Axiomtek’s CEM510 Has Built-in Kaby Lake Platform with Wide Operating Temperatures and 4K Graphics

Axiomtek announces the release of CEM510, its new high-performance COM Express Type 6 compact module featuring triple displays...

The multi-purpose transportation box PC comes with the onboard 7th generation Intel Core or Intel Celeron processor 3965U along with onboard two DDR4-2133 SO-DIMM slots supporting up to 32GB system memory. It offers two I/O module slots and a wide selection of value-added modules (VAM) to meet different user requirements and customizations. The rugged tBOX500-510-FL is certified with E-Mark, ISO 7637-2, EN 50155, EN 50121, DNV 2.4, EN 45545-2 and IEC 60945.

The tBOX500-510-FL supports a wide temperature range from -40°C to +70°C and anti-vibration of up to 3 Grms. The fanless embedded box PC equipped with intelligent power management offers ACC on/off delay, shutdown delay and over/under voltage protection. It supports a wide voltage input range: 9V to 36V DC for vehicle applications, 14V to 32V DC for railway & marine applications, and 16.8V to 137.5V DC for railway applications. For system integrators with extensive storage needs, the box computer offers two 2.5” SATA HDDs and one mSATA. The new transportation embedded system is well suited for transportation-related applications such as security surveillance, onboard devices controller, truck fleet management, data transfer, and onboard passenger infotainment system.

Axiomtek’s tBOX500-510-FL is a communication-rich platform. It offers nine different kinds of VAMs for selection, making it an extremely flexible system that can be used in a wide range of applications. The user can choose the value-added module to customize the system to fit their needs. With PoE module, the customer can connect IP camera directly without installing an extra PoE switch and further save overall cost. Each port supports maximum 30W PoE (IEEE 802.3at) output, the total power budget is 120W.

Also, with external PoE power supply, the embedded PC can support 8-port PoE outputs while operating under extreme environments. Thanks to its compact size, the transportation embedded computer can be easily fit into the traffic control cabinet. The unit comes with three full-sized PCI Express Mini Card slots and two SIM card slots for 3G/4G, GPS, Wi-Fi, and Bluetooth connections. Above features makes the tBOX500-510-FL a perfect match for every customer’s needs,” said Jessica Tseng, a product manager of Product PM Division at Axiomtek.

The all-in-one tBOX500-510-FL features multiple I/O design including one GbE LAN, four USB 3.0 ports, one COM port, one DVI-I port, two audio ports, one power input (M12 or phoenix connector), one PoE power input, four antenna openings, one remote power switch, and one reset button. To fulfill various applications in one single system, the solution-ready computer has a wide range of VAM (value-added modules) options, such as 4-port PoE module, 4-port GbE LAN module, 4-port isolated RS-232/422/485 module, isolated DIO (8-in/8-out) module, 4-port isolated CANbus 2.0A/B module, 5-port BNC (4-port video-in &1-port audio-in) module, etc. With VAM design, even custom I/O module can be done within a short period of time and achieve real cost savings with minor equipment adjustments.
