TVS Diode Arrays from Littelfuse Protect Sensitive Telecom Ports from ESD, Lightning-Induced Surges

Published: Jan 30,2018

2027 Read

Littelfuse introduced a series of AEC-Q101-qualified TVS Diode Arrays optimized to protect sensitive telecommunication ports against electrostatic discharge (ESD) and lightning-induced surge events. SP4208 Series TVS Diode Arrays (SPA Diodes) integrate low capacitance steering diodes with either one avalanche breakdown diode (for unidirectional protection) or two (for bidirectional protection).

More on This

600V, 1A Power SIP Relay Provides Up to 4000V Input-to-Output Isolation

IXYS Integrated Circuits Division, now part of Littelfuse, Inc., introduced the CPC1984Y, a 600V, Normally Open Power SIP Relay...

Littelfuse Announces 1700V, 1 Ohm SiC MOSFET

Littelfuse introduced its first 1700V SiC MOSFET, the LSIC1MO170E1000, expanding its portfolio of SiC MOSFET devices. An...

They can safely absorb up to 30A of surge current and a minimum of ±30kV ESD without performance degradation. Their low loading capacitance (3.0pF) and high surge capability make them well-suited for protecting telecommunication ports such as Ethernet and other high-speed data interfaces.

“The SP4208 Series TVS Diode Arrays combine a standoff voltage of 8V with a low dynamic resistance, which supports those implementations of G.Fast that run at higher voltages,” said Tim Micun Business Development Manager, TVS Diode Arrays (SPA® Diodes) at Littelfuse. “Their ‘flow-through’ design minimizes signal distortion, reduces voltage overshoot, and allows for a simpler printed circuit design.”

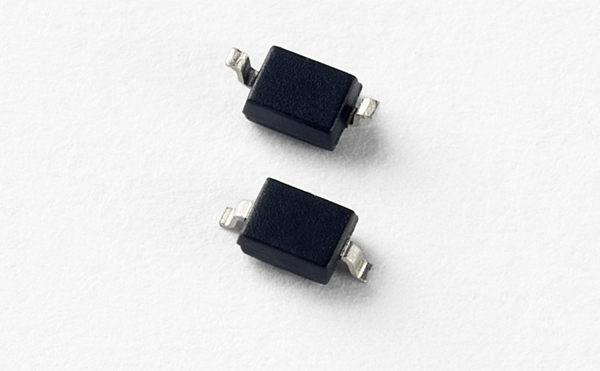

SP4208 Series TVS Diode Arrays are available in SOD323 packaging in tape and reel format in quantities of 3,000. Sample requests may be placed through authorized Littelfuse distributors worldwide. For a listing of Littelfuse distributors, please visit Littelfuse.com.
