Lowest-power Multi-standard, Multi-band MCUs

Published: Mar 01,2018

441 Read

To meet growing connectivity needs for buildings, factories and the grid, Texas Instruments (TI) introduced its newest SimpleLink wireless and wired microcontrollers (MCUs).

More on This

Two New FET Drivers Benefit Aanosecond LIDAR Applications and 50-MHz DC/DC Converters

Expanding on its industry-leading gallium nitride (GaN) power portfolio, Texas Instruments (TI) announced two new high-s...

New 1-MHz Active Clamp Flyback Chipset and Industry-First 6-A Three-level Buck Battery Charger

Texas Instruments (TI) introduced several new power management chips that enable designers to boost efficiency and shrin...

These new devices offer industry-leading low power consumption and concurrent multi-standard and multi-band connectivity for Thread, Zigbee, Bluetooth 5 and Sub-1 GHz. With more memory and unlimited connectivity options, the expanded SimpleLink MCU platform offers designers 100 percent code reuse across TI's Arm Cortex-M4-based MCUs to enhance and connect sensor networks to the cloud.

The lowest power: The new wireless and host MCUs consistently achieve the lowest power in the industry, more than 10 years on a coin-cell battery, and now offer a newly enhanced low-power sensor controller with current consumption as low as 1.5uA for a 100 Hz comparator reading.

More than 10 connectivity protocols: The expanded SimpleLink MCU platform supports a variety of connectivity protocols and standards for 2.4 GHz and Sub-1 GHz bands, including the latest Thread and Zigbee standards, Bluetooth low energy, IEEE 802.15.4g, Wireless M-Bus and more.

Option for extended range: With the multi-band CC1352P wireless MCU, developers can extend range even further for metering and building automation applications using its integrated power amplifier with high output power of +20-dBm and transmit current as low as 60 mA.

2 MB of flash memory: New SimpleLink MSP432P4 MCUs, with an integrated 16-bit precision ADC, give developers eight times more code space and the ability to host multiple wireless connectivity stacks and a 320-segment liquid crystal display (LCD) with extended temperature range for industrial applications.

Enhanced security features: The CC13x2 and CC26x2 wireless MCUs offer new security hardware accelerators for the following encryption protocols: AES-128/256, SHA2-512, Elliptic Curve Cryptography (ECC), RSA-2048 and true random number generator (TRNG).

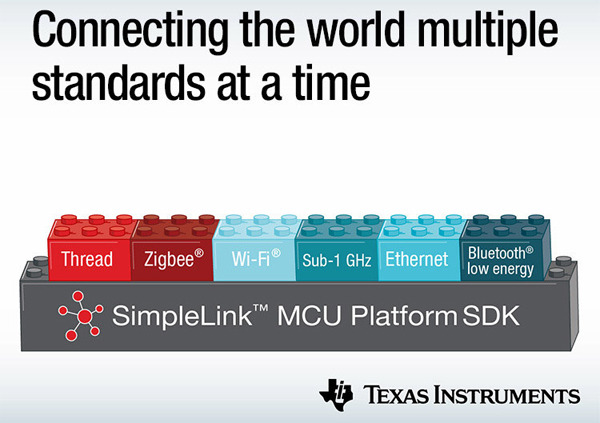

Code compatibility: These new products are all supported by the SimpleLink software development kit (SDK) and provide a unified framework for platform extension through 100 percent application code reuse.

To assist in developing with the SimpleLink MCU platform, TI offers the SimpleLink Academy, a comprehensive and interactive learning experience with overviews and training tutorials on the supported industry standards and technologies.
