Würth Elektronik eiSos Board-to-board Connectors

Published: Apr 10,2018

170 Read

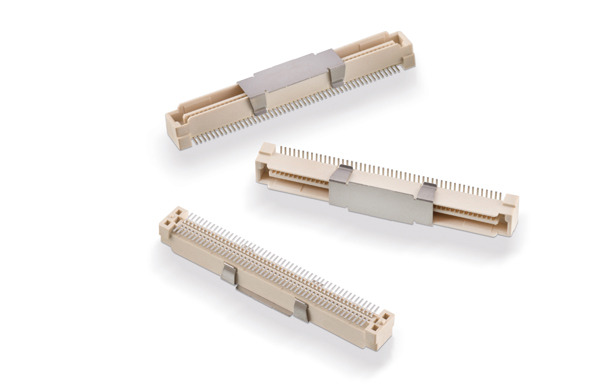

Würth Elektronik eiSos has expanded its portfolio of board-to-board connectors. Under the designation WR-BTB, the manufacturer of electronic and electromechanical components offers a broad spectrum of plugs and receptacles. Examples for the new SMT assembly connectors are plugs and receptacles with collars and chamfers in 1.00 mm and 0.80 mm pitch.

More on This

Controlling Plant Growth Selectively with Artificial Light

Würth Elektronik eiSos presents WL-SMDC – the new mono-color ceramic LEDs for SMT assembly – optimally tailored to requirements in artificially illuminated greenhouses...

Würth Elektronik eiSos and Infineon Present Wireless Power Development System 200-W-WPT

Under the name 760308EMP-WPT-200W, Würth Elektronik eiSos and Infineon Technologies AG are offering a 200-watt development system for wireless power transfer...

The robust plug connectors are designed for 30 mating cycles, the insulation material is of flammability class UL94 V-0 (certified UL approval E323964), and has an operating temperature of -55°C to +85°C. The rated current of the partially gold-plated copper-alloy contacts is 0.5 A, with the voltage stability at 500 V.

The contact resistance is just 50 mΩ. The plugs are available in 1.00 mm pitch with heights of 8.35 and 6.35 mm; the matching receptacles are available with 10.30, 7.30 and 5.30 mm heights. For the 0.80 mm pitch plugs, these heights are 7.60, 5.60 and 4.60 mm. The counterparts have heights of 11.75, 7.75 and 3.75 mm. All WR-BTB series components also offer a variety of different numbers of poles.

Free samples can now be requested. All products are available from stock with no minimum order quantity.
