Avalue Announces Type 6 COM Express Compact Module, ESM-APLC and ESM-KBLU

Published: Apr 30,2018

429 Read

Avalue announces Type6 COM express compact module products, ESM-APLC and ESM-KBLU. The COM Express specification defines a family of Small Form Factor (SFF) and Computer-on-Module (COM) single board computers appropriate for a wide range of commercial and mil/aero applications. One of the most significant benefits of Computer-on-Module (COM) is the reduction of development time by its modular design. Complied with the function-ready baseboard, the COM is in a state of seamless upgradability and allowed to follow technologies of the time.

More on This

Avalue’s Latest PICMG COM R3.0 Type 6 module, ESM-CFH

Avalue’s high-quality SOM (System on Module) takes the modular concept to a whole new level, effectively shortening the R&D timeline...

Rugged Display Technologies Enhance Reliability

Avalue upgrades its display technologies to overcome the potential problems of operation in harsh and demanding environment such as rapid change of temperature...

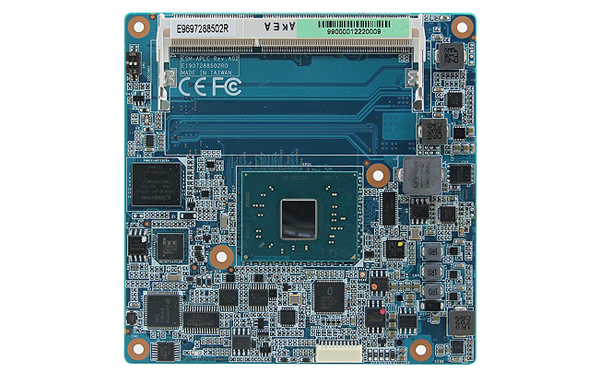

ESM-APLC is equipped with the Intel Apollo lake Pentium N4200 1.1GHz / 6W and Celeron N3350 1.1GHz / 6W SoC Processors. ESM-APLC supports one 204-pin DDR3L 1866 SO-DIMM (up to 8GB) and eMMC 5.0 up to 64GB (optional). Extensive I/O support including 8 x USB 2.0, 4 x USB 3.0, 2 x SATA III, 1 x UART, 1 x 8-bit GPIO, 1 x SMBus, 1 x LPC and 1 x I2C. ESM-APLC supports several graphic interface including dual-channel 18/24-bit LVDS supports up to 1920 x 1200 @60Hz, VGA Supports up to 1920 x 1200 @60Hz, HDMI supports up to 3840x2160 @30Hz and DP support 4096x2160 @60Hz. Multiple Display: Support 3 independent display. The processor TDP is only 6W which is very helpful for energy-saving and to prevent possible problems caused by overheated system. ESM-APLC is ideal for customers who need optimized processing and graphics performance with low power consumption in a long product life solution, such as embedded board, MID/UMPC, Microserver/Server and Consumer Electronics.

ESM-KBLU is equipped with the Intel Kaby Lake 7th Gen Core SoC ULT i7/i5/i3 BGA Processors, supports two 260-pin DDR4 SO-DIMM up to 32GB. Extensive I/O support including 8 x USB 2.0, 4 x USB 3.0, 3 x SATA III, 2 x UART, 1 x 8-bit GPIO, 1 x SPI, 1 x SMBus, 1 x LPC and 1 x I2C. For graphic interface, ESM-KBLU supports dual-channel18/24-bit LVDS supports up to 1920 x 1200 @60Hz, Display Port supports up to 4096 x 2304 @60Hz, HDMI supports up to 4096 x 2160 @24Hz, DVI, VGA supports up to 1920 x 1200 @60Hz and eDP(Factory Option). ESM-KBLU is ideal for Digital Signage, Thin Client, ATM, Smart Kiosk, Gamming Industries and SMB Storage Appliance & Surveillance applications.
