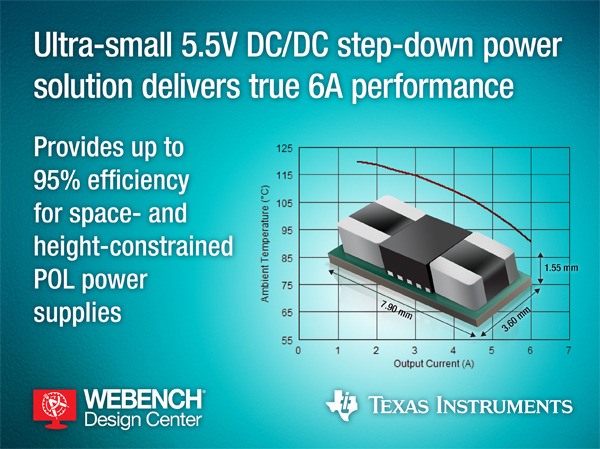

TI's Ultra-small 5.5-V DC/DC Step-down Power Module Delivers True 6-A Performance

Published: May 08,2018

722 Read

Texas Instruments (TI) introduced a 5.5-V step-down power module that delivers true, continuous 6-A output current with up to 95 percent efficiency. The easy-to-use TPSM82480 DC/DC module integrates power metal-oxide semiconductor field-effect transistors (MOSFETs) and shielded inductors into a tiny, low-profile footprint for space- and height-constrained applications such as point-of-load telecommunications, networking, and test and measurement power supplies.

More on This

Smallest Data Converters Deliver High Integration and Performance

Texas Instruments (TI) introduced four tiny precision data converters, each the industry’s smallest in its class. The ...

TI Introduces a New Family of LED Drivers with 12-bit PWM, 29-kHz Dimming Frequency

First 12-bit, 29-kHz RGB LED Driver Family Enables Vivid Color and Seamless Animation with Zero Audible Noise Texas I...

TI's highly integrated TPSM82480 maintains the required 6-A output current over the full temperature range without additional airflow. This is accomplished using a two-phase control topology that shares the load between the phases to ensure high efficiency and balanced operation. Additional features include adjustable soft start, voltage select (VSEL) to support multiple processor stages, and a power-good indicator.

Read the blog post, "Decoding power module derating curves," to determine thermal limits in a power module data sheet.

Prototype samples of the TPSM82480 are available now through the TI store. Offered in a 24-pin quad flat micro (QFM) MicroSIP package, the module is priced at US$3.57 in 1,000-unit quantities. Order the TPSM82480EVM-002 evaluation module and download the PSpice transient models. Create a complete 5.5-V, 6-A DC/DC step-down solution now with WEBENCH Power Designer.

The TPSM82480 is the newest addition to TI's broad portfolio of DC/DC power modules that integrate inductors and MOSFETs into a single package to save board space and simplify prototyping, design and manufacturing.
