Vishay Intertechnology Snap-in Power Aluminum Capacitors Save Space, Lower Costs

Published: May 17,2018

208 Read

Vishay Intertechnology, Inc. (NYSE: VSH) today introduced a new series of miniature snap-in power aluminum electrolytic capacitors. Ideal for power supplies, solar inverters, and industrial motor controls, the Vishay BCcomponents 259 PHM-SI series combines 30 % higher ripple current than previous-generation components with a long useful life.

More on This

New Vishay Intertechnology Series of Direct Water-Cooled Wirewound Resistors

Vishay Intertechnology introduced a new series of direct water-cooled wirewound resistors that offers ultrahigh power dissipation to 9000 W with almost no external radiation...

Vishay Intertechnology High Speed PIN Photodiode Offers Enhanced Sensitivity

Vishay Intertechnology broadens its optoelectronics portfolio with the introduction of a new high speed silicon PIN photodiode with enhanced sensitivity for visible light...

With ripple currents up to 4.42 A, the devices released today allow designers to utilize fewer components to save board space and lower costs. Their long useful life of 3,000 hours at 105 °C permits use in demanding applications requiring more than 10 years of lifetime from capacitors in ambient temperatures to 60 °C.

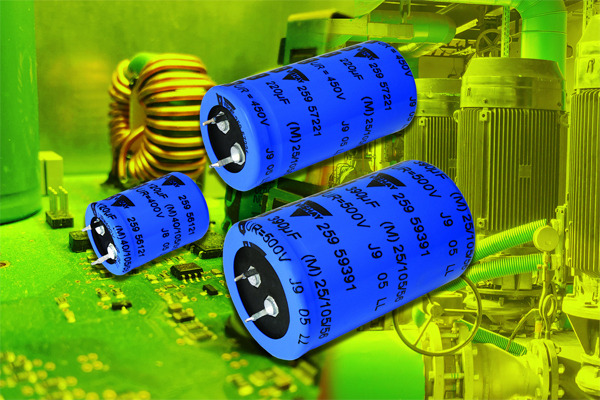

Featuring a cylindrical aluminum case, insulated with a blue sleeve, 259 PHM-SI series devices feature rated voltages to 500 V in 25 compact case sizes ranging from 22 mm by 25 mm to 35 mm by 60 mm. The RoHS-compliant capacitors are also available with 3-pin keyed polarity snap-in terminals.

As polarized aluminum electrolytic capacitors with a non-solid electrolyte, the devices are ideally suited for buffering, filtering, and energy storage in compact power applications, including power supplies for server farms or industrial tools such as plasma cutters; motor drives for compressors in industrial cooling systems; and industrial lamp drivers for UV water treatment systems.
