With an elegant appearance and a thin profile, P1100 series accommodates rich I/O interfaces, including 2x Intel GbE LAN, 4x USB 3.0, 4x COM, and 8x Isolated DIO. The system also supports three independent displays running simultaneously and enables smooth 4K/2K playback via DisplayPort. In addition, 2x mini PCIe slots and 1x SIM socket are supported to empower the system as a communication hub for wireless data connections. A 2.5” SATA drive bay and a mSATA socket with SATAIII (6 Gb/s) can be installed as a mass storage device. Moreover, users can install the ready-to-use CFM modules to add power ignition sensing and Power over Ethernet (PoE) functions for their specific applications.

The rugged design features include wide range operating temperature and anti-shock/vibration, Its wide range 9V-48V DC power input includes a lockable terminal block connector for industrial automation fields. Supporting with over-voltage, over-current, and power reverse protections, it protects the system against power input faults and ensures long-term stable operation in demanding environments. In addition, the slim embedded computer applies the standard VESA mounting hole pattern, DIN-rail mount, and wall mount for your installation needs.

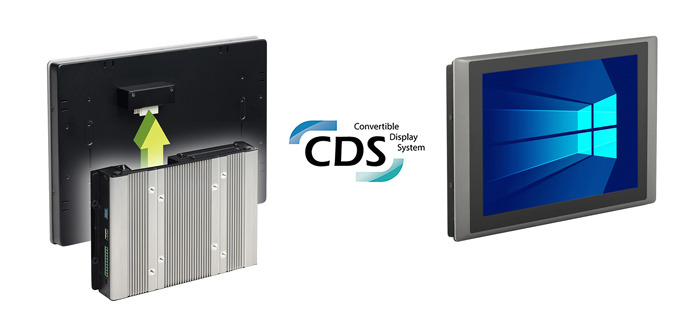

“By taking advantage of Cincoze patent CDS technology and its modular design, P1100 system module is 100% compatible with existing CDS display models. Users can upgrade their existing panel PC to Intel Apollo Lake platform and take no any design risk.” said Brandon Chien, CEO of Cincoze. “The modular panel PC can easily be assembled by system module and display module, but without having to set BIOS and connect wires. It minimizes the maintenance efforts and offers a massive number of possible panel PC configurations under a low inventory.”

The combinations of P1100 panel PC are available in numerous versions covering a variety of display sizes from 8.4 to 21.5 inches, P-Cap multi-touch or resistive single-touch screen, ultra-high brightness displays, and optical bonding. Customers have a wide range of selection to build their SCADA/HMI system, outdoor KIOSK, and many other industrial applications.
