Avalue Release the Latest 3.5-inch Signal Board Computer, ECM-CFS

Published: Sep 13,2018

1807 Read

Avalue Technology is unveiling 3.5-inch signal board computer, ECM-CFS, based on Intel 8th Generation Core i7/i5/i3 and Celeron Processors. The 8th generation Intel Core, Pentium and Celeron processor families (Coffee Lake S) introduce the first 6-core processors for performance-demanding applications.

More on This

Avalue Is Bringing the New Embedded Single Board Computers

TAIPEI, TAIWAN–Avalue Technology is bringing the new embedded single board computers, ECM-EHL, with Intel® Pentium®/...

Avalue Brings AIoT to Taipei City with Innodisk Partnership

TAIPEI, Taiwan – Avalue Technology Inc. announced today a new partnership with Innodisk, with the goal of bringing AIoT to Taipei City streets...

These processors are manufactured on Intel's most up-to-date and optimized 14 nm technology. The S-series of processors enables more manufacturing flexibility to match performance, features, and price to IoT and other applications. These processors offer thermal design power (TDP) 35W to fit specific designs configurations with performance and low-power requirements. The S-series processors are ideally suited for applications like gaming, content creation, virtual reality, transactional retail terminals, digital security systems, and health care.

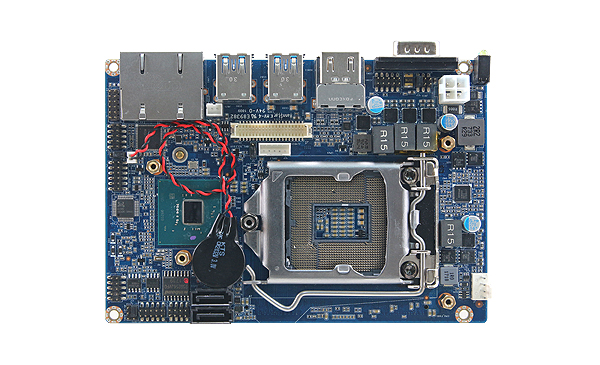

ECM-CFS, a 3.5-inch signal board computer, features 8th Gen Intel Core i7/i5/i3 and Celeron Processors with Intel Q370 chipset and supports one 260-Pin DDR4 SO-DIMM Up to 16GB DDR4 2400 SDRAM. Extensive I/O support including 4 x USB 3.1, 2 x USB 2.0, 2 x COM, 1 x 8-bit GPIO, 2 x SATA III, 1 x Mini PCIe (supports mSATA). ECM-CFS supports several graphics Dual HDMI supports up to 4096x2304 @ 30Hz and 18/24-bit 2-CH LVDS supports up to 1920x1080 @ 60Hz. ESM-APLC is the ideal solution for Retail, Automation, Vending machine, POS/KIOSK, Signage and Industrial transportation applications.
