TI Introduces a New Family of LED Drivers with 12-bit PWM, 29-kHz Dimming Frequency

Published: Nov 28,2018

50 Read

First 12-bit, 29-kHz RGB LED Driver Family Enables Vivid Color and Seamless Animation with Zero Audible Noise

More on This

TI Announces New 60-GHz sensor portfolio

Texas Instruments (TI) announced its 60-GHz sensor portfolio, the highest resolution single-chip, complementary metal-oxide semiconductor (CMOS), for industrial systems...

New TI Portfolio of Ready-to-use, 600-V GaN FET Power Stages Supports Applications up to 10 kW

Texas Instruments (TI) announced a new portfolio of ready-to-use, 600-V gallium nitride (GaN), 50-mΩ and 70-mΩ power stages to support applications up to 10 kW...

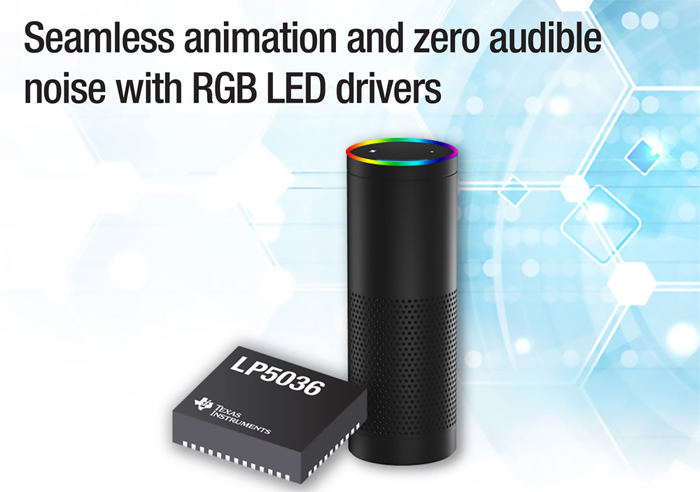

Texas Instruments (TI) introduced a new family of LED drivers with integrated, independent color mixing, brightness control and a power-saving mode. The LP5018, LP5024, LP5030 and LP5036 enable smooth, vivid color and reduce system power consumption.

The devices are the industry's first to offer a 29-kHz dimming frequency, above human-audible range, to help designers of applications that use a human-machine interface, such as portable electronics, building automation and appliances, eliminate the noise typically heard when dimming lights.

Additionally, designers can achieve smoother color and brightness-level adjustments compared to standard pulse-width modulation (PWM) solutions, by taking advantage of the devices' integrated 12-bit PWM generator.

Key features :

High-resolution PWM dimming: The devices in TI's LP50xx family integrate a 12-bit PWM generator that operates above a human-audible frequency, at 29 kHz per channel, enabling smooth, vivid color with zero audible noise.

Ultra-low quiescent current: An integrated power-saving mode dramatically reduces power consumption to as low as 0.01 mA from the typical 9 mA offered in existing devices, improving total system efficiency in standby mode.

Multichannel options: 18-, 24-, 30- and 36-channel options provide independent color mixing and brightness control, while three integrated, programmable banks enable simplified software coding and ease of design.
