Vishay Intertechnology F339X2 305VAC Automotive X2 EMI Suppression Film Capacitors

Published: Nov 29,2018

111 Read

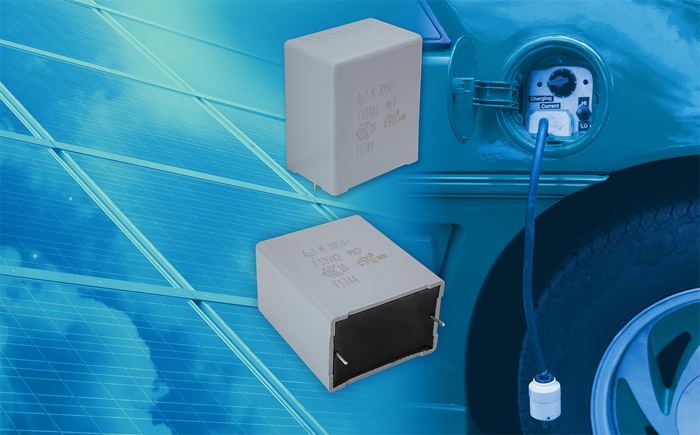

Vishay Intertechnology introduced the new F339X2 305VAC series of Automotive Grade X2 electromagnetic interference (EMI) suppression film capacitors for standard across the line applications (50 Hz / 60 Hz). The F339X2 305VAC series is qualified to both AEC-Q200 (rev. D) and IEC 60384-14: 2013 / AMD1: 2016 grade IIB.

More on This

New Vishay Intertechnology Series of Direct Water-Cooled Wirewound Resistors

Vishay Intertechnology introduced a new series of direct water-cooled wirewound resistors that offers ultrahigh power dissipation to 9000 W with almost no external radiation...

Vishay Intertechnology High Speed PIN Photodiode Offers Enhanced Sensitivity

Vishay Intertechnology broadens its optoelectronics portfolio with the introduction of a new high speed silicon PIN photodiode with enhanced sensitivity for visible light...

To comply with the new humidity grading system defined under IEC 60384-14: 2013 / AMD1: 2016 grade IIB, Vishay BCcomponents F339X2 305VAC series devices withstand temperature humidity bias (THB) testing of 85 °C, 85 % RH for 500 hours at rated voltage with high stability on capacitance and dissipation factors, which translates into greater robustness and longer service life in harsh application conditions.

The devices released today will serve as EMC filters for automotive and industrial power inverters. The capacitors offer lead pitches of 15 mm, 22.5 mm, and 27.5 mm; capacitance values from 0.1 μF to 4.7 μF with tolerances down to ± 10 %; and a permissible DC voltage of 630 V.

The encapsulation of the F339X2 305VAC series consists of a flame-retardant UL-class 94 V-0 plastic case, which is epoxy resin-sealed. The lead (Pb)-free devices are RoHS-compliant.

Samples and production quantities of the new X2 capacitors are available now, with lead times of 17 weeks.
