New Vishay Intertechnology Mid-Power Ultraviolet Emitting Diode With Quartz Window

Published: Feb 11,2019

1008 Read

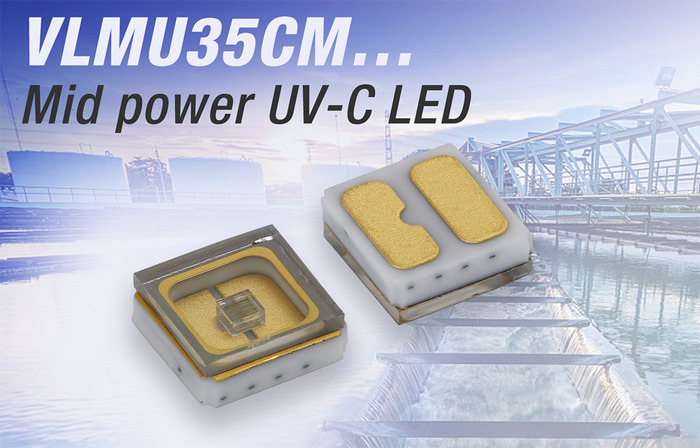

Vishay Intertechnology introduced a ceramic mid-power ultraviolet (UVC) emitting diode for sterilization, sanitation, and purification applications. Featuring a quartz window, the Vishay Semiconductors VLMU35CM..-280-120 delivers an extremely long lifetime in a compact 3.5 mm by 3.5 mm by 1.2 mm surface-mount package.

More on This

Vishay Intertechnology Launches Industry's First AEC-Q200 Qualified Ceramic Disc Capacitors

Vishay Intertechnology introduced a new series of Automotive Grade AC line rated ceramic disc safety capacitors that are...

Vishay Intertechnology F339X2 305VAC Automotive X2 EMI Suppression Film Capacitors

Vishay Intertechnology introduced the new F339X2 305VAC series of Automotive Grade X2 electromagnetic interference (EMI)...

Designed to replace mercury UVC lamps, the device released today offers an emission angle of ± 60° and radiant power to 18 mW at 100 mA without the need for an external lens. Built on AlGaN technology, the VLMU35CM..-280-120 features forward current up to 150 mA, forward voltage down to 4 V, and a wavelength range of 270 nm to 290 nm.

The emitter diode's specifications make it ideal for water and air purification, physical surface sterilization, medical disinfection, and portable sanitizers. RoHS-compliant, halogen-free, and Vishay Green, the VLMU35CM..-280-120 is compatible with reflow soldering processes and features a Moisture Sensitivity Level of 3 in accordance with J-STD-020.
