Improved GUI for Advanced Inertial Measurement Units from ST

Published: Apr 21,2019

196 Read

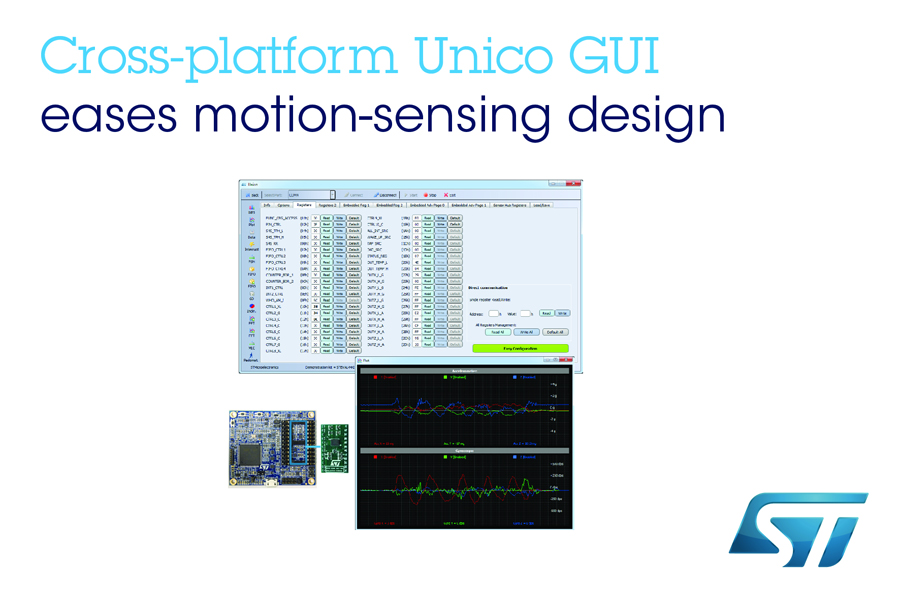

STMicroelectronics’ Unico GUI greatly simplifies configuring the finite state machine and machine learning core (FSM and MLC) logic of its latest Inertial Measurement Units (IMU), including the recently announced LSM6DSO and LSM6DSOX 6-axis modules.

More on This

STMicroelectronics’ 650V High-Frequency IGBTs Boost Performance with Latest High-Speed Technology

The STMicroelectronics HB2 650V IGBT series delivers efficiency and performance gains for medium- and high-speed applications such as PFC converters...

Free Integrated Development Environment from STMicroelectronics Expands STM32Cube MCU Ecosystem

STMicroelectronics continues to make the STM32 family of richly featured and energy-efficient microcontrollers more easily accessible for designers through the STM32CubeIDE...

The FSM logic lets users run gesture and motion-recognition algorithms directly in the sensor for always-on convenience and low power consumption. The MLC implements machine-learning classifiers for real-time always-on motion and vibration pattern recognition.

With Unico GUI (STSW-MKI109L for Linux, STSW-MKI109M for Mac OSX, and STSW-MKI109W for Windows machines) to configure the module’s internal registers and embedded FSM and MLC logic, users can quickly and easily create their own motion-recognition algorithms. The GUI also makes light work of combining the module’s accelerometer and gyroscope data with inputs from additional external sensors, such as a magnetometer, for even more sophisticated context-sensing capabilities.

When used in smartphones, wearables, or industrial devices, the FSM and MLC -- as an embedded, low-power engine for gesture and motion recognition -- allow user-interface functions and context-aware apps to continue running while the main processor sleeps to maximize battery runtime.

The LSM6DSO contains logic for up to 16 independent state machines, each generating a hardware interrupt activated by a specific motion pattern, while the LSM6DSOX contains also the logic to implement multiple-stage decision trees for machine-learning classification.
