HOLTEK New BA45F5222 Smoke Detector MCU

Published: Jun 05,2019

687 Read

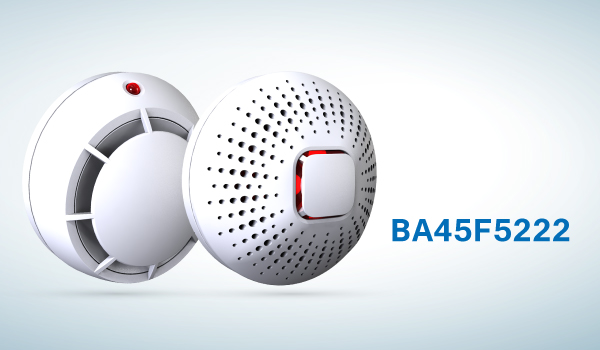

Holtek announced the release of its new Smoke Detector dedicated Flash MCU, the BA45F5222. The device includes a fully integrated smoke detector AFE and an IR emission driving circuit, which is suitable for smoke detectors in fire prevention products. It is especially suitable for use in the low-cost area of smoke detector products.

More on This

HOLTEK’s New HT66F0021/HT66F0031/HT66F0041 Cost-Effective MCUs

Holtek announced the release of three new high performance/cost ratio small package Flash MCUs, the HT66F0021, HT66F0031 and HT66F0041...

HOLTEK New HT68F0036 High Current I/O MCU

Holtek wishes to announce a new addition to its Cost-Effective Flash MCU range with the release of the HT68F0036. This new device includes integrated high current I/Os...

The device contains a 1Kx14 Flash Program Memory, a 64x8 Data Memory, a 32x14 Emulated EEPROM, a 10-bit Periodic Type TM and a multi-channel 10-bit A/D converter. The internal Smoke Detector AFE includes a fully integrated amplification circuit which is required by the IR Sensor as well as a filter circuit. These require no external components apart from the Sensor. The dual channel IR LED emission constant current driving circuit provides up to 360mA and 205mA driving capabilities which can be software adjusted in stages thus minimising the need for peripheral components.

With regard to packaging, the device is supplied in both 8-pin and 10-pin SOP package types. Compared with the previous BA45F5240 device, this new BA45F5222 device retains the smoke detection core circuit and removes the communication interface, which makes the device more suitable for use in low-cost and streamlined smoke detection products and smoke detection modules.
