Avalue’s Latest PICMG COM R3.0 Type 6 module, ESM-CFH

Published: Oct 22,2019

847 Read

Avalue’s high-quality SOM (System on Module) takes the modular concept to a whole new level, effectively shortening the R&D timeline, facilitating the development of compatible products that adapt to the harsh environment, helping customers create infinite possibilities. Avalue’s Latest PICMG COM R3.0 Type 6 module, ESM-CFH, is adopting Intel 9th/ 8th Generation Xeon &Core i7 / i5 / i3 Processors. ESM-CFH is an ideal solution for embedded edge computing, classic high-end medical imaging systems, and HMIs as well as high-end gaming, infotainment and digital signage systems that require best-in-class computing power.

More on This

Rugged Display Technologies Enhance Reliability

Avalue upgrades its display technologies to overcome the potential problems of operation in harsh and demanding environment such as rapid change of temperature...

Avalue’s EPD-42T Revolutionary Patient Communication Board Enabled by E Ink ePaper

Avalue has announced the EPD-42T, a revolutionary patient communication board enabled by E Ink digital paper technology. Featuring the benefits of digital paper...

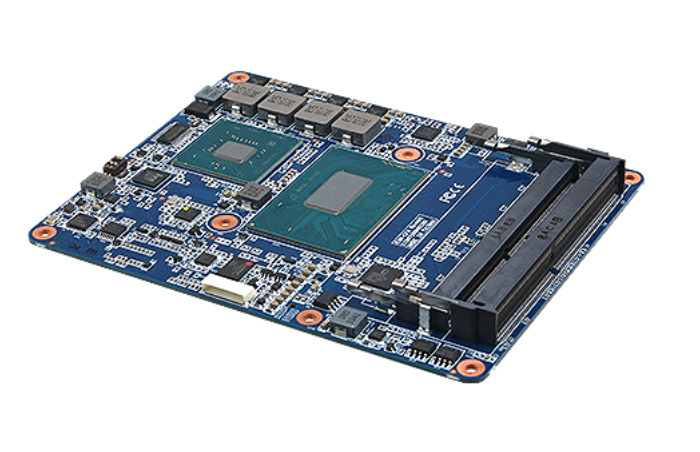

ESM-CFH, a PICMG COM R3.0 Type 6 module with Intel 9th/ 8th Generation Xeon &Core i7 / i5 / i3 Processors. It offers up to 3x 260-pin DDR4 2400 SO-DIMM with up to 96 Gbyte (non-ECC/ECC), 3rd socket on the rear side. Flexible I/O supports with 4 USB 3.2 Gen.2(10GB/s ), 8 USB 2.0, 1 Gen3 PEGx16, 8 PCIex1, 4 SATAIII. ESM-CFH also supports dual-channel 18/24-bit LVDS, VGA, DP/HDMI/DVI, (eDP Option). With +9 ~ +19V wide range power input supported, ESM-CFH is suitable for various vertical industry applications and harsh environment uses.

Compare with the previous generation product, ESM-KBLH, ESM-CFH comes with better CPU performance in the same thermal envelope. And support workstation CPU/ Mobile Core i H series CPU. TDP options of 45W (with 35W cTDP down), 35W, and 25W give an excellent balance of performance and power. ESM-CFH supports 3 independent 4K HD displays.
