New iNEMO Sensors from STMicroelectronics Deliver ML Core Efficiencies for Industrial and Consumer

Published: Mar 25,2020

813 Read

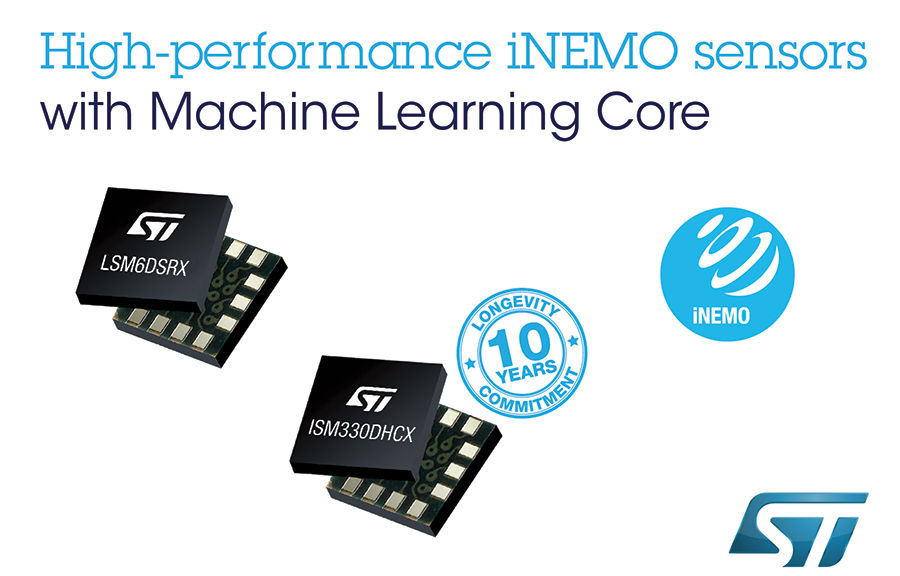

STMicroelectronics is extending the benefits of its motion-detection machine-learning core (MLC) technologies into industrial and high-end consumer applications with the latest ISM330DHCX and LSM6DSRX 6-axis iNEMO inertial measurement units (IMU).

More on This

STMicroelectronics Reveals Next-Generation NFC Reader IC for Digital Car Keys

STMicroelectronics has extended its portfolio of ST25R NFC reader ICs with a new addition to the successful digital car key line, the ST25R3920...

Arrow Electronics, Panasonic Industry, and STMicroelectronics Join Forces to Deliver IoT Modules

Arrow Electronics, Panasonic Industry, and STMicroelectronics (ST) have introduced a low-power wireless multi-sensor edge-intelligence solution for smart factory...

The MLC performs basic AI pre-processing of motion data using about 0.001 times the power a typical microcontroller (MCU) would consume to complete the same task. As a result, IMUs featuring this IP can offload the host MCU, enabling longer battery runtime, lower maintenance, and reduced size and weight in context-aware and motion-sensing devices.

Following the launch of the first MLC-enhanced commercial IMU last year, ST’s LSM6DSRX and ISM330DHCX are ready for high-end consumer and industrial applications such as augmented/virtual reality, drone flight controls, dead-reckoning navigation systems, disk-antenna positioning systems, fleet management, container-tracking devices, and dynamic inclinometers for industrial vehicles. The consumer-grade LSM6DSRX contains a 3-axis accelerometer and a 3-axis digital gyroscope with extended full-scale angular-rate range up to ±4000dps and leading-edge performance in temperature and time. The industrial-grade ISM330DHCX comes with 10-year product-longevity assurance and is specified from -40°C to 105°C, with embedded temperature compensation for superior stability.

In each device, the MLC interacts with integrated finite-state machine (FSM) logic, which can run simple repetitive algorithms like counting steps, hits, or rotations at lower power than is possible in a microcontroller. The FSM signals to the main controller after detecting a preset number of events or after a defined time has elapsed.

Both devices are in production now. The ISM330DHCX is available as a 14-lead plastic land grid array (LGA) device.
