New Vishay Intertechnology Wireless Charging Coils Offer Direct Replacements for EOL Devices

Published: May 04,2020

341 Read

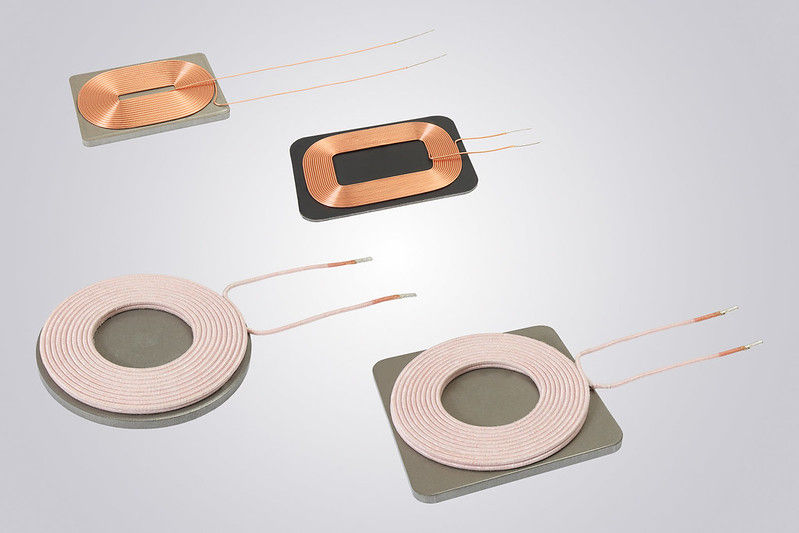

Vishay Intertechnology introduced new powdered iron based, WPC-compliant (Wireless Power Consortium) wireless charging coils that offer direct replacements for devices for which end-of-life (EOL) was announced in 2017. Offering a durable construction and high permeability shielding, the Vishay Dale receiver and transmitter coils provide high efficiency in a variety of industry-standard sizes.

More on This

Vishay Intertechnology Introduces New Commercial Inductors in Compact 1212 Case Size

Vishay Intertechnology, Inc. introduced three new commercial IHLP low profile, high current inductors in the 3.3 mm by 3...

3V Ruggedized ENYCAP Energy Storage Capacitors Offer Long Life and High Moisture Resistance

Vishay Intertechnology introduced a new series of 3.0 V ruggedized ENYCAP electrical double-layer energy storage capacit...

For wireless charging up to 10 W in portable electronics, the six new receiver coils feature inductance of 10.8 µH to 22 µH at 200 kHz with ± 5 % inductance tolerance, typical Q from 29 to 65 at 200 kHz, and DCR from 175 mΩ to 427 mΩ (± 5 %) at +25 °C.

For Qi wireless charging pads, the three new transmitters offer inductance of 6.3 µH to 24 µH at 200 kHz with a ± 5 % inductance tolerance, DCR from 40 mΩ to 75 mΩ (± 5 %) at + 25 °C, and typical Q from 185 to 200 at 200 kHz. The devices are available with heat rated current of 6 A and 7 A, and saturation current of 20 A and 22 A.
