Toshiba Releases MOSFET Gate Driver Switch IPD for Automotive ECUs

Published: May 14,2020

570 Read

Toshib has launched “TPD7107F,” a gate driver switch IPD that controls the conduction and shut-off of current supplied to automotive electronic control units (ECUs), such as junction boxes and body control modules. Shipments start today.

More on This

Toshiba’s 600V Small Intelligent Power Device Helps Lower Motor Power Dissipation

Toshiba has launched “TPD4162F,” a high-voltage intelligent power device (IPD) housed in a small surface mount package...

Toshiba’s 80V N-channel Power MOSFETs Fabricated with Latest Generation Process

Toshiba has added 80V N-channel power MOSFETs to its “U-MOS X-H series” fabricated with the latest generation process...

Combined with Toshiba’s automotive low On-resistance N-channel MOSFET, TPD7107F can form a high-side switch suitable for load current. As an electronic switch, free from the contact wear of mechanical relays, the new IPD can help to reduce the size and power consumption of automotive ECUs, and to make them maintenance-free.

By delivering enhanced functions that support the high reliability required for automotive ECUs—a self-protection function and various built-in diagnostic functions that are output to the microcontroller—the new IPD monitors load operation and the MOSFET to which it is connected. In abnormal operation, it rapidly turns off the MOSFET to reduce the load on the MOSFET.

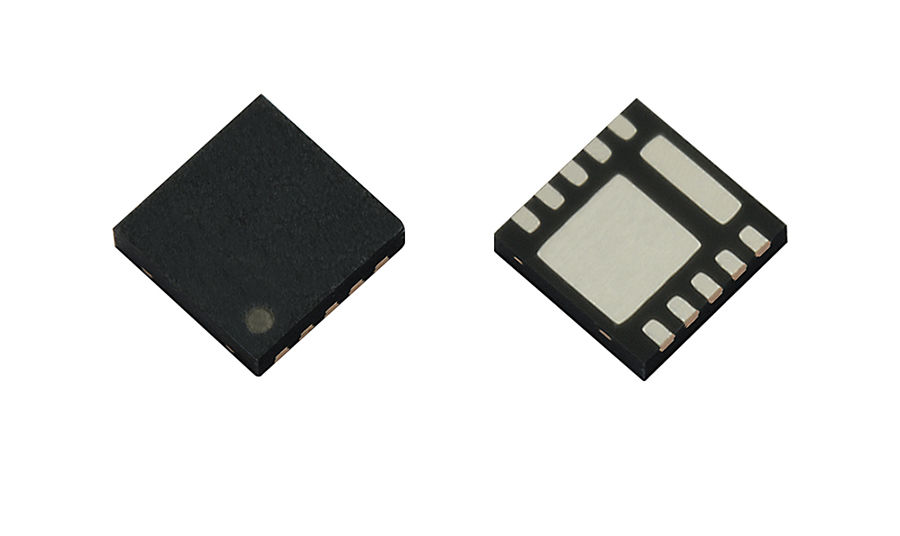

TPD7107F is housed in a WSON10A package, and it reduces peripherals such as capacitors since it has built in a voltage boosting circuit. The new IPD secures supply current as low as 3μA (max.) during stand-by.
