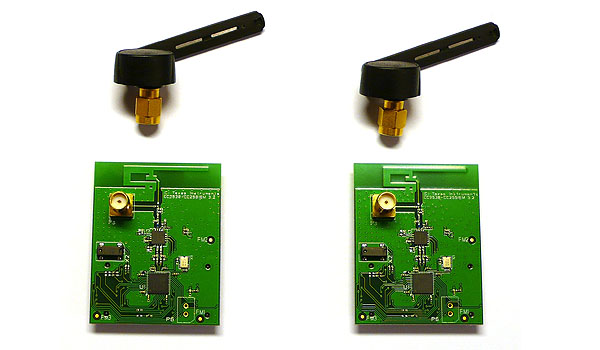

The first launched pairing is the CC2592 with the SimpleLink ZigBee CC2538 wireless microcontroller (MCU) to speed time to market of ZigBee-enabled equipment. The combined solution benefits from -101 dBm sensitivity and +20 dBm output power, which raises the link budget by 17 dB and equates to up to a 7x range improvement. To order a CC2538-CC2592 evaluation kit please visit the TI eStore.

As a low cost, industrial temperature solution, the CC2592 offers extended range for a variety of applications including gateways, electric and gas meters, home and building automation, lighting, safety and security systems. Additionally, the SimpleLink CC2592 range extender is a highly integrated solution with small external BOM, which reduces cost, simplifies layout and allows for smaller end-equipment form factors.

Features:

－ Seamless Interface to 2.4-GHz Low-Power RF Devices from Texas Instruments

－ +22-dBm Output Power

－ 3-dB Typical Improved Sensitivity on CC2520, CC253X, and CC85XX

－ Very Few External Components

－ Digital Control of LNA Gain by HGM Terminal

－ 100 nA in Power Down (LNA_EN = PA_EN = 0)

－ Low-Transmit Current Consumption

－ Low-Receive Current Consumption

－ 4.7-dB LNA Noise Figure, Including T/R Switch and External Antenna Match

－ RoHS Compliant 4-mm × 4-mm QFN-16 Package

－ 2.0-V to 3.7-V Operation

－ –40°C to +125°C Operation
