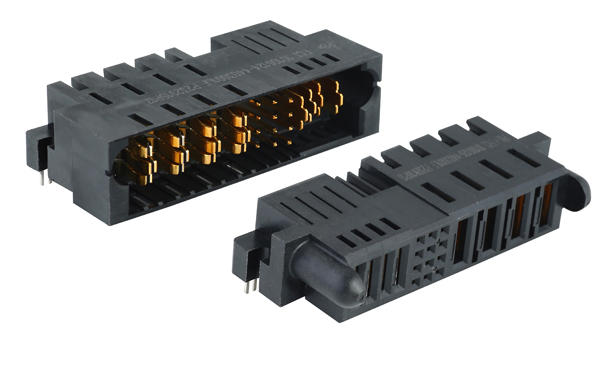

PwrBlade+ is a modular AC/DC power distribution connector designed for demanding PCB and cable mounted applications. The PwrBlade+ connector builds on the PwrBlade connector's proven technology, with enhancements to achieve improved current rating performance and reduced power loss.

It is rated up to 75A per power contact, without exceeding a 30°C temperature rise in still air. This product features a high power contact and housing design that allows higher current carrying capability in a more compact package. The connector features low power contacts as well as signals for lower power application and monitoring/control circuits.

The connector features a highly ventilated housing design to enhance heat dissipation. These are crucial features in server and data storage applications, to help avert overheating issues, thus increasing the reliability of the equipment.

The PwrBlade+ power connector offers superior electrical performance and overall power density. By designing to a common set of strict material and dimensional specifications, the FCI PwrBlade+ and TE Multi-Beam XLE connectors provide customers with the added satisfaction of a pre-certified second source, mutually qualified to a common test specification. The products support applications where customers are looking for higher efficiencies, lower power loss, and improved reliability compared to alternative designs.

Features:

－ High power contact option (up to 75A/contact; 30°C temperature rise in still air) for cost-effective power delivery in 1U and 2U power supplies or power distribution applications

－ Low power contact option (up to 49A/contact; 30°C temperature rise in still air) for applications with multiple voltages and lower power requirements

－ Highly vented housing design maximizes heat dissipation for effective system cooling

－ Half-bullet guides offer a reduced connector footprint

－ Large operating temperature range (-40°C to +125°C) for extreme environments

－ Right angle and co-planar options are available with both power contacts for power distribution and signal contacts for power control

－ Number and placement of power and signal contacts are highly configurable for custom power needs

－ Solder or press-fit tails are available for termination flexibility

－ Compatible with lead-free processing temperatures
